GER205-25mm-ZSFF Insert GRIP-IT 360 Degree 25mm Bearing

$134.99
SKU: Kit19373
UPC: 00193019271391
Item: GER205-25mm-ZSFF Bearing
Type: Bearing Insert
Shaft Diameter: 25mm
Dynamic Load Rating: 14011 N
Static Load Rating: 7162 N
This item will be shipped within One Week
Returns Subject to 15% restocking Fee

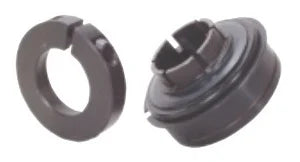

GER205-25mm-ZSFF Bearing Insert GRIP-IT 360 Degree Locking
Set Screw Locking
25mm Inner Diameter


GER205-25mm-ZSFF Bearing Insert GRIP-IT 360 Degree Locking, bearing is standard load capacity, bearing is Wide inner ring with Cylindrical outer ring and snap ring, bearing has relubrication groove with oil hole on side opposite of locking callar, bearing is black oxide plated inner and outer rings, bearing is nylon patched class 3A set screw, Standard seal is R-seal.

  • Item: GER205-25mm-ZSFF Bearing
  • Type: Bearing Insert
  • Shaft Diameter: 25mm
  • Dynamic Load Rating: 14011 N
  • Static Load Rating: 7162 N
  • Quantity: One Bearing
  • Ball Bearing

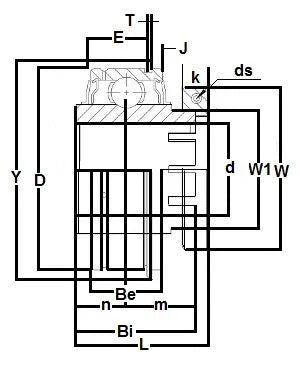

Dimensions (Inches)
D Bi Be L n m E W1 J T Y K W ds (UNF-Thread)
52 34.5 19.1 38.4 14.3 20.2 15.3 33.7 2.46 1.35 57.9 9.5 49.2 8-32x5/8
