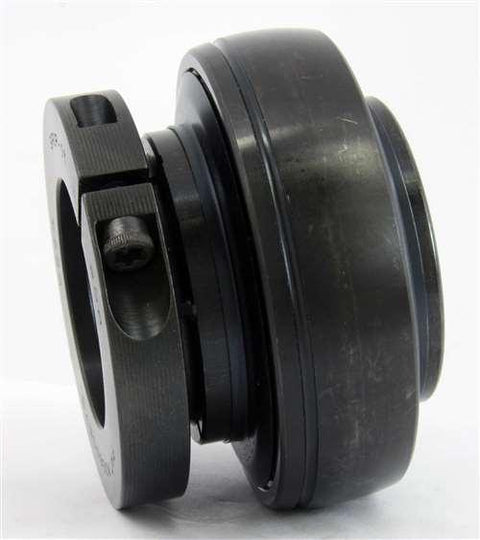

Efficiently secure rotating components with a GRIP IT 360 Degree Bearing Insert featuring set screw locking, a 1 inch inner diameter, wide inner ring, and standard load capacity for stable, vibration-free performance and quick, reliable installation
✔️ 1 in bore, dynamic 14011 N, static 7162 N, 360° locking.
This locking bearing insert fits a 1 inch shaft and is designed to support rotating elements in machinery, conveyors, and automation setups.
✅ Shaft diameter: 1 in (25.4 mm) inner bore
✅ Dynamic load rating: 14011 N
✅ Static load rating: 7162 N
✅ 360-degree locking with set screw
✅ Wide inner ring; cylindrical outer ring with snap ring
✅ Relubrication groove with oil hole opposite the locking collar
✅ Black oxide plated inner/outer rings
✅ Nylon patched class 3A set screw
✅ Standard seal: R-seal

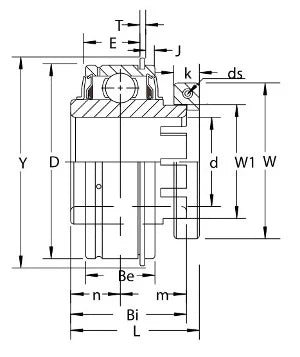

| Dimension | Inch | mm |
|---|---|---|
| D | 2-3/64 in | 52.0 mm |
| Bi | 1-7/32 in | 31.0 mm |
| Be | 3/4 in | 19.05 mm |
| L | 1-1/2 in | 38.1 mm |
| n | 9/16 in | 14.29 mm |
| m | 51/64 in | 20.32 mm |
| E | 39/64 in | 15.49 mm |
| W1 | 1-21/64 in | 33.74 mm |
| J | 7/64 in | 2.78 mm |
| T | 3/64 in | 1.19 mm |
| Y | 2-9/32 in | 57.92 mm |
| K | 3/8 in | 9.53 mm |
| W ds (UNF-Thread) | 1-15/16 in | 49.21 mm |
💡 What is a pillow block bearing used for in machinery?
In simple terms, a handy way to support a rotating shaft while keeping it aligned.
1) Supports rotating shafts in conveyors, pumps, and machines
2) Maintains alignment under load for smoother operation
3) Works with standard bore and locking screws for quick replacement
