Generator Interlock Kit For Eaton Cutler Hammer BR Series Panels With One And A Quarter To One And A Sixteenth Inch Spacing 150A Or 200A Brushed Nickel Finish Plug On Neutral Easy Install Safe Home Backup Power

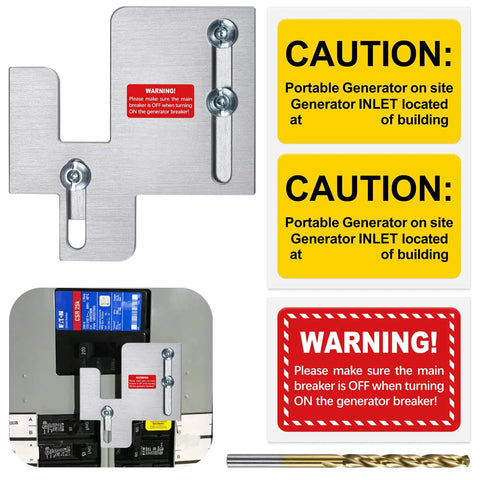

✔️ Includes interlock, safety labels, straps, drill bit, and guide
This interlock kit is designed for BR Series and CH Series panels with Plug-on Neutral, supporting 150-200A service, and 1.25-1.4375 inch spacing between the main breaker and the generator breaker. It’s built from corrosion-resistant aluminum alloy with an anodized surface for insulation and safety. The kit helps create a safe backup power setup by preventing backfeed when the generator runs.

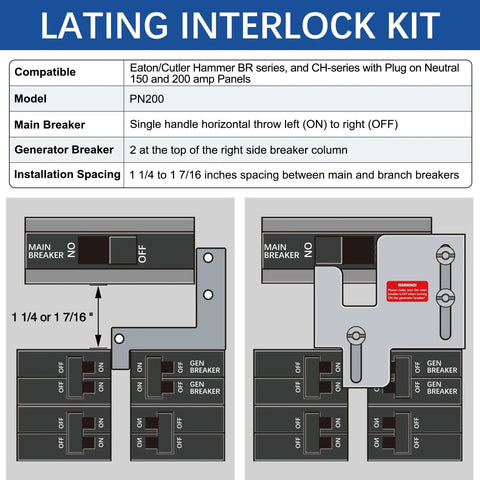

✅ Compatibility: BR Series and CH Series with Plug-on-Neutral, 150-200A panels; spacing 1.25" to 1.4375"

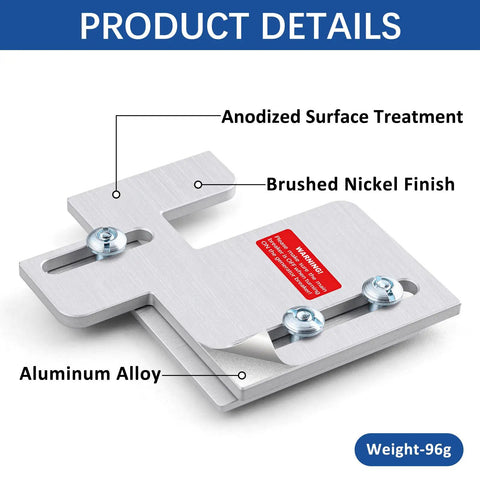

✅ Material: corrosion-resistant aluminum alloy with anodized finish for insulation and heat safety

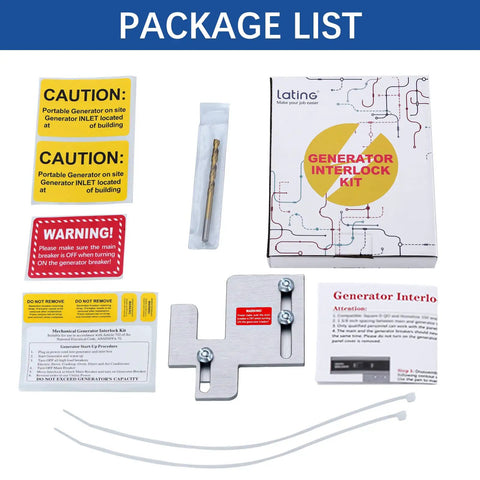

✅ Package contents: Interlock x1; safety labels x6; 11.8" generator breaker retainer straps x2; 3/16 drill bit x1; installation guide x1
✅ Finish: Brushed nickel finish
✅ Note: If the interlock doesn’t operate correctly, stop using it and contact support

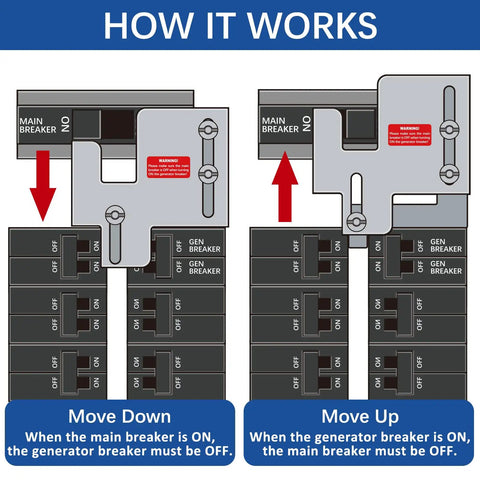

💡 What is a generator interlock kit for BR/CH panels and how does it help with safe back-up power? This handy guide explains the basics and benefits. - Ensures a safe, code-compliant transfer of power from generator to panel - Prevents backfeed by mechanically interlocking the main breaker with the generator breaker - Easy install with included drill bit, straps, and installation guide - Works with Plug-on-Neutral BR and CH series panels rated 150-200A
