General Purpose Single Phase Split Phase Motor Three Quarters Horsepower At Sixty Hz 1,725 RPM 56 Frame 115 Volt AC 11.2 Amp Full Load One Speed Unit For Home Shop Machinery Workhorse

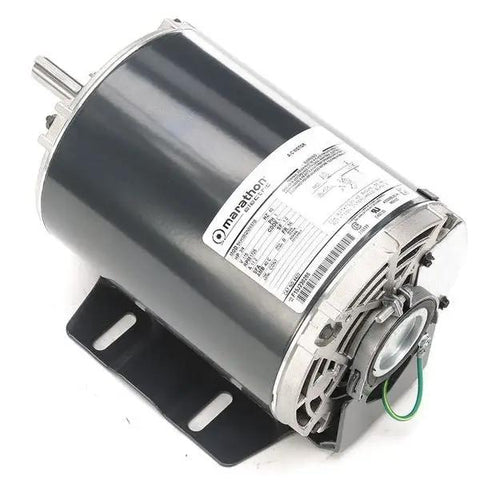

3/4 HP Single-Phase Shop Motor, 56 Frame, 115V
✔️ 1,725 RPM, 60 Hz, 115V, 11.2 A, cradle base, CW/CCW

General purpose single-phase split-phase motor designed for home shop machinery. This 3/4 HP model suits drills, belt sanders, small conveyors, and other light-duty drive tasks where reliable, simple power is needed.

✅ Power: 3/4 HP continuous
✅ Voltage: 115V AC; not usable at 200V or 208V
✅ Speed: 1,725 RPM at 60 Hz
✅ Frame: 56
✅ Enclosure: Open Drip Proof
✅ Duty: Continuous
✅ Rotation: CW/CCW
✅ Mounting: Cradle Base
✅ Ambient Temp: Max 40C
✅ Insulation: Class B

💡 What is a general purpose single-phase split-phase motor used for in home shop settings? This handy motor is a common choice for lightweight power needs in hobby shops.

- It powers drills, belt sanders, grinders, and small conveyors in compact spaces
- Works with 115V single-phase power for easy wiring and setup
- Provides continuous-duty operation in environments up to 40C with open drip proof enclosure
