GEG30ES-2RS Spherical Bushing Plain Bearing 30x55x20mm
GEG30ES-2RS Spherical Plain Bearing
✔️ 30mm ID × 55mm OD × 32mm Overall × 20mm Race - Double Sealed - 1 Bearing
The GEG30ES-2RS is a heavy-duty spherical plain bearing featuring double rubber seals for extra protection against dust, dirt, and moisture. With a 30mm bore and durable steel-on-steel contact, it’s ideal for high-load, oscillating motion in equipment like hydraulic cylinders, industrial pivots, and construction machinery.
✅ Inner diameter (ID): 30mm
✅ Outer diameter (OD): 55mm
✅ Overall width (B): 32mm
✅ Race width (C): 20mm
✅ Closures: Two rubber seals (2RS) for contamination resistance
✅ Type: Radial spherical plain bearing
✅ Material: Carbon steel
✅ Dynamic load rating: 79,000 KGF
✅ Static load rating: 399,000 KGF
✅ Brand: VXB Bearing
✅ Quantity: 1 bearing

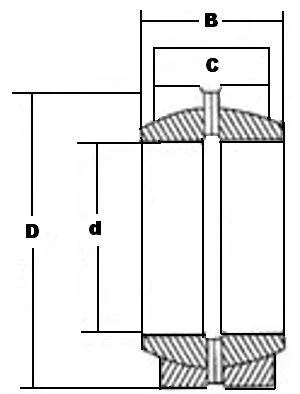

Dimensions Table (mm):
| d (ID) | D (OD) | B (Overall Width) | C (Race Width) |
|---|---|---|---|
| 30 | 55 | 32 | 20 |
💡 Why choose double-sealed spherical plain bearings for industrial motion systems?
Double-sealed bearings offer extended service life by keeping lubrication in and contaminants out. They're perfect for outdoor or high-dust environments where consistent performance and minimal maintenance are essential.
Tough, sealed, and ready to pivot - drop the GEG30ES-2RS into your system and enjoy smooth motion with rock-solid durability!
