GD81 GD82 GD86 GD87 GD88 Photoelectric Correction Control System With Taper Tension Correction Controller For Pro Grade Precision Tension Control And Auto Alignment In Industrial Settings
✔️ Pack: single unit per model, GD-81/82/86/87/88, tension control

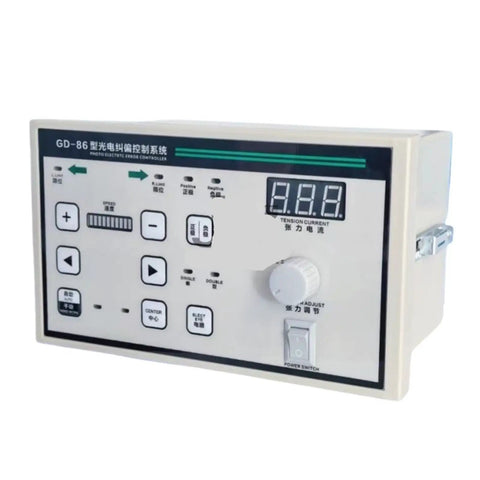

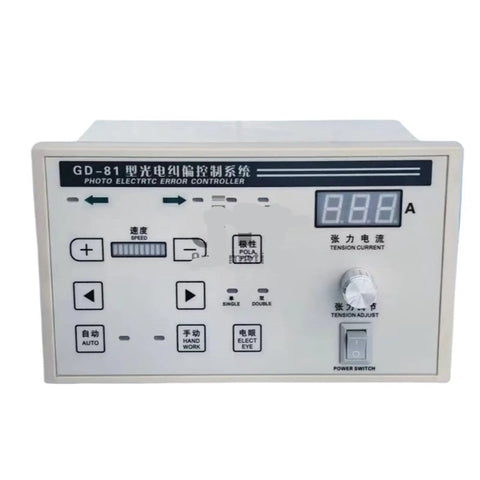

The GD series Photoelectric Correction Control System is built to stabilize web flow in industrial coating, winding, and printing lines. It uses photoelectric eyes to detect edges and lines, delivering automatic tension correction and precise alignment across multiple models (GD-81, GD-82, GD-86, GD-87, GD-88). Color variant GD-82 shown.
✅ Response Time: 1 ms - 50 ms (Adjustable)
✅ Web Guiding Precision: Depends on photoelectric eye
✅ Output Power: 2 A or 3 A depending on model
✅ Detection Method: Edge Detection / Line Tracking
✅ Web Guiding Method: Single Photoelectric Eye / Dual Photoelectric Eyes
✅ External Interface: Manual / Automatic; Left / Right
✅ Accessories (Optional): Photoelectric Eye, Synchronous Motor, Ball Screw
✅ External Installation: Embedded installation footprint varies by model
✅ Working Voltage: AC 220V ±15% 50 Hz
💡 What is a photoelectric correction system used for in web guiding?
- Handy for keeping a moving web aligned during coating, winding, or printing
- Uses a photoelectric eye to detect edges or lines and adjust tension automatically
- Supports single or dual eye setups and can run in manual or automatic mode
- Offers adjustable response times to fine tune alignment
