Gas Lens Collet Body And Long Nozzle TIG Torch Kit For SR WP 9 20 25 41 Piece Pro Grade Consumables Set With Back Cup And Back Cap Fits 9 20 25 Series Torches For Precision Welds

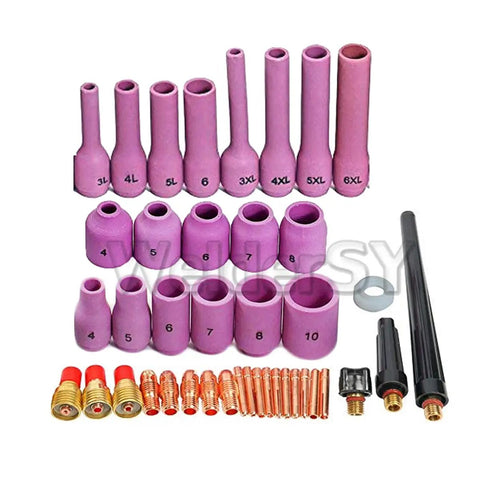

✔️ 41pc kit fits 9/20/25 torches with back cups and back caps
This gas lens collet body and long nozzle TIG torch kit is designed to upgrade compatibility and performance for SR WP 9/20/25 series torches.

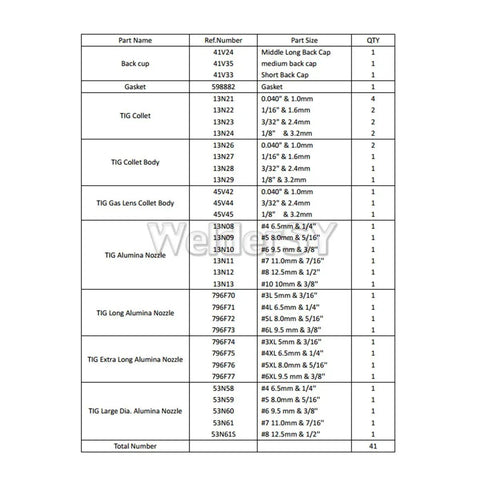

✅ 3pcs TIG back cup references: 41V24 (Middle Long Back Cap), 41V35 (Middle Back Cap), 41V33 (Short Back Cap)
✅ 1pc TIG gasket: 598882
✅ 10pcs TIG collets: 13N21 (0.040" & 1.0mm) x4, 13N22 (1/16" & 1.6mm) x2, 13N23 (3/32" & 2.4mm) x2, 13N24 (1/8" & 3.2mm) x2
✅ 4pcs TIG collet bodies: 13N26 (0.040" & 1.0mm) x2, 13N27 (1/16" & 1.6mm) x1, 13N28 (3/32" & 2.4mm) x1, 13N29 (1/8" & 3.2mm)
✅ 3pcs TIG gas lens collet bodies: 45V42 (0.040" & 1.0mm), 45V44 (3/32" & 2.4mm), 45V45 (1/8" & 3.2mm)
✅ 6pcs alumina gas cups / nozzles: 13N08 (#4, 6.5mm & 1/4"), 13N09 (#5, 8.0mm & 5/16"), 13N10 (#6, 9.5mm & 3/8"), 13N11 (#7, 11.0mm & 7/16"), 13N12 (#8, 12.5mm & 1/2"), 13N13 (#10, 10mm & 3/8")
✅ 4pcs long TIG welding alumina gas cups / nozzles: 796F70 (#3L) 5mm & 3/16", 796F71 (#4L) 6.5mm & 1/4", 796F72 (#5L) 8.0mm & 5/16", 796F73 (#6L) 9.5mm & 3/8"
✅ 4pcs TIG extra long alumina gas cups / nozzles: 796F74 (#3XL) 5mm & 3/16", 796F75 (#4XL) 6.5mm & 1/4", 796F76 (#5XL) 8.0mm & 5/16", 796F77 (#6XL) 9.5mm & 3/8"
✅ 5pcs TIG Gas Lens Alumina Cups/Nozzles: 53N58 (#4) 6.5mm & 1/4", 53N59 (#5) 8.0mm & 5/16", 53N60 (#6) 9.5mm & 3/8", 53N61 (#7) 11.0mm & 7/16", 53N61S (#8) 12.5mm & 1/2"
✅ total quantity: 41pcs
This kit includes parts compatible with 9/20/25 series torches such as Lincoln PTA-9, PTA-20 and PTA-25, Miller Diamondback DB9/DB20/DB25, and Weldcraft WP-9/WP-20/WP-25 for precision welding in fabrication and repair work.
💡 What is a gas lens TIG torch kit and how does it help 9/20/25 series torches? This handy kit helps boost shielding gas delivery and precision welding on common 9/20/25 torches. - Improves shielding gas flow for steadier arcs and cleaner welds. - Includes back cups, caps, gas cups, and collets for quick swaps. - Compatible with Lincoln PTA-9/PTA-20/PTA-25, Miller Diamondback, and Weldcraft WP series.
✝️
