Garage Ready Automotive Engine Analyzer Multimeter With NCV, Manual Ranging, Backlit Display, Data Hold, Auto Off, Temperature Readouts Celsius Fahrenheit, RPM Tachometer, Dwell Angle Test, Measures Voltage Current Resistance And More

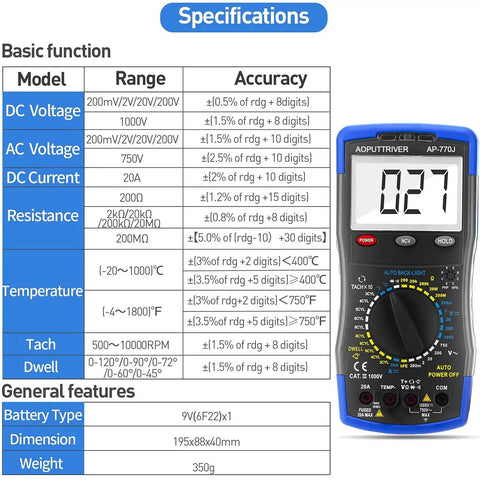

✔️ Measures DC voltage to 1000V, AC to 750V, 20A current
The AP-770J Digital Automotive Multimeter is a ready-to-use diagnostic tool for car enthusiasts and professional mechanics. It combines voltage, current, resistance, temperature, RPM, and dwell angle measurement with NCV and a backlit display, making it perfect for garages, service bays, and DIY workshops.
✅ AC current: 20A
✅ AC voltage ranges: 200mV/2V/20V/200V/750V
✅ DC voltage ranges: 200mV/2V/20V/200V/1000V
✅ Resistance: 200Ω/2KΩ/20KΩ/200KΩ/20MΩ/200MΩ
✅ Temperature: -4 to 1800 °F (-20 to 1000 °C) with thermocouple
✅ Dwell angle: 0-120.0°, 0-90.0°, 0-72.0°, 0-60.0°, 0-45.0°
✅ Tachometer: 500-10000 RPM

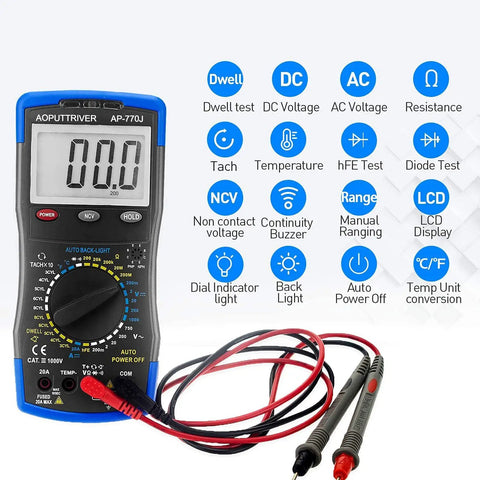

✅ Features: NCV, Data Hold, Diode Test, Auto Shut Down, Auto Backlit Display, Continuity with Buzzer
✅ Safety: 600V CAT IV, 1000V CAT III; protective sleeve; fuse protection

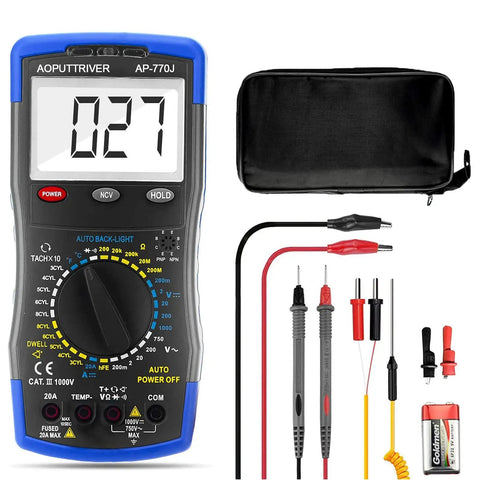

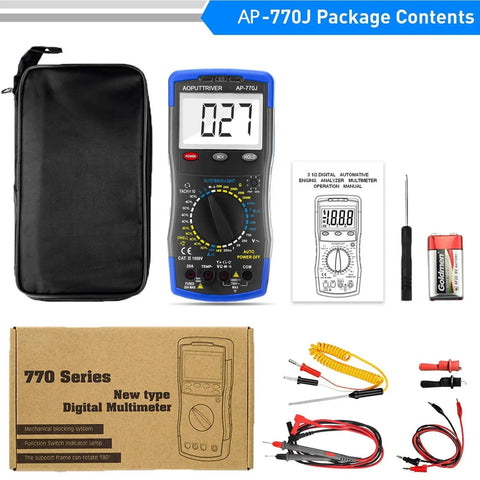

✅ Package includes: 1× AP-770J, 1×9V battery, 2×test leads, 1×thermocouple, English manual, screwdriver
💡 What is an automotive multimeter used for and why is NCV handy?
A handy tool for quick checks and deeper diagnostics in vehicles.
- Used to measure voltage, current, resistance, and temperature to pinpoint problems
- RPM and dwell angle readings help with ignition timing and sensor checks
- NCV helps safely verify live circuits before touching wires
- Backlit display and data hold improve readability in dim garages
