FYH

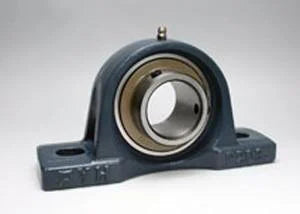

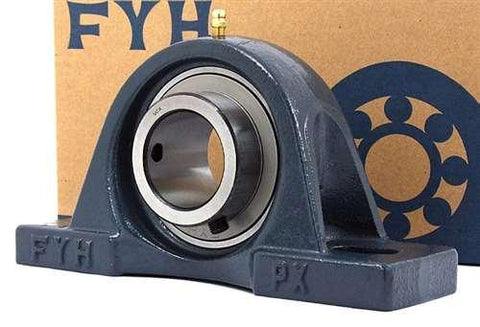

FYH Bearing UCPX12-39 2 7/16 Pillow Block Mounted Bearings

No reviews
$159.24
SKU: Kit11331
Item: UCPX12-39 Bearing
Type: Mounted Ball Bearing
Shaft Dia: 2 7/16" inch
Bolt Size: 3/4
Bearing No: UCX12-39
UCPX12-39 FYH Bearing
Pillow Block Bearing
Cylindrical bore (with set screws)
2 7/16" Inner Diameter Bearing



This is the most common type of mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Mounted units with cast steel housings are also available in this series, and are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately.

  • Item: UCPX12-39 Bearing
  • Type: Mounted Ball Bearing
  • Shaft Dia: 2 7/16" inch
  • Bolt Size: 3/4"
  • Bearing No: UCX12-39
  • Basic Load (Cr): 57.2 KN
  • Basic Load (Cor): 40.1 KN
  • Quantity: One Bearing

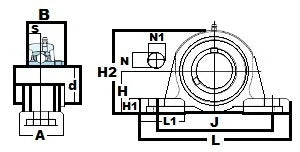

Dimensions (inches)
d H L A J N N1 H1 H2 L1 B S
2-7/16" 3" 11-1/4" 3-1/4" 8" 31/32" 1-9/16" 1-3/32" 5-31/32" 3-15/32" 2-9/16" 1"
