FYH

FYH Bearing UCP326 130mm Pillow Block Mounted Bearings

$2,894.99
SKU: Kit11404
UPC: 00193019077085
Item: UCP326 Bearing
Type: Mounted Ball Bearing
Shaft Dia: 130mm
Bolt Size: M33
Bearing No: UC326

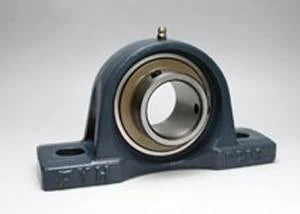

UCP326 FYH Bearing
Pillow Block Bearing
Cylindrical bore (with set screws)
130mm Inner Diameter



This is the most common type of mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Mounted units with cast steel housings are also available in this series, and are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately.

  • Item: UCP326 Bearing
  • Type: Mounted Ball Bearing
  • Shaft Dia: 130mm
  • Bolt Size: M33
  • Bearing No: UC326
  • Basic Load (Cr): 229 KN
  • Basic Load (Cor): 214 KN
  • Quantity: One Bearing

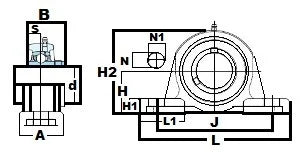

Dimensions (mm)
d H L A J N N1 H1 H2 L1 S
130 180 600 140 480 40 55 50 355 195 54
