FYH
FYH Bearing UCFX14-44 2 3/4" Square Flanged Mounted Bearings
Title
$348.99
SKU: UCFX14-44-FYH
UPC: 00193019083185
UPC: 00193019083185
Item: UCFX14-44 FYH
Type: Four bolt Flanged Bearing
Bolt Size: 3/4" inch
Basic Dynamic Load (Cr): 104,000 N
Basic Static Load (Cor): 68,200 N
Type: Four bolt Flanged Bearing
Bolt Size: 3/4" inch
Basic Dynamic Load (Cr): 104,000 N
Basic Static Load (Cor): 68,200 N

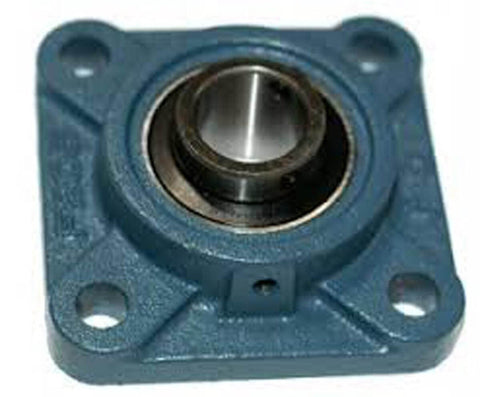

UCFX14-44 FYH Bearing Square Flanged Mounted Bearing Cylindrical bore (with set screws) 2 3/4" Inner Diameter |
This heavy duty four-bolt flange unit has a round cartridge on the backside of the flange which allows for precise mounting and alignment.Applications are Rotating drum, rotating roller and when precise mounting accuracy is required.
|

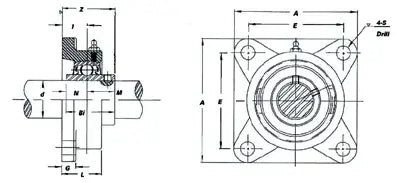

Dimensions (Inches) | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
d | L | A | J | N | A1 | A2 | A0 | B | S | Bolt size |
2-3/4" | 7 3/4" | 2 3/8" | 5 63/64" | 29/32" | 7/8" | 1 29/64" | 3 7/32" | 3.063" | 1.331" | 3/4" |
