FYH
FYH Bearing UCF320-64 4 Square Flanged Mounted Bearings
Title
$1,277.99
SKU: Kit11542
UPC: 00193019078181
UPC: 00193019078181
Item: UCF320-64 FYH Ball Bearing
Type: Four bolt Flanged Bearing
Bolt Size: 1 1/4" inch
Basic Load (Cr): 173 KN
Basic Load (Cor): 141 KN
Type: Four bolt Flanged Bearing
Bolt Size: 1 1/4" inch
Basic Load (Cr): 173 KN
Basic Load (Cor): 141 KN
UCF320-64 Square Flanged Mounted FYH Bearing Cylindrical bore (with set screws) 4" inch Inner Diameter Bearing |
This heavy duty four-bolt flange unit has a round cartridge on the backside of the flange which allows for precise mounting and alignment.Applications Rotating drum, rotating roller, precise mounting accuracy is required
|

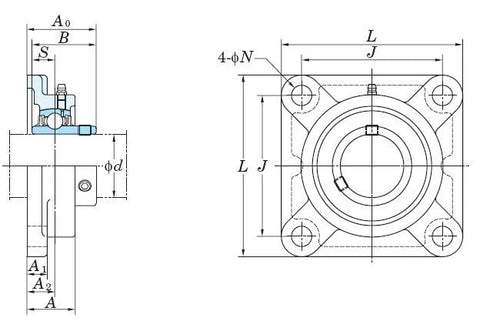

Dimensions (inches) | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
d | L | A | J | N | A1 | A2 | A0 | B | S | ||||
4" | 12-7/32" | 3-11/16" | 9-17/32" | 1-1/2" | 1-1/4" | 2-21/64" | 4-29/32" | 4-1/4" | 1-21/32" |
