FYH

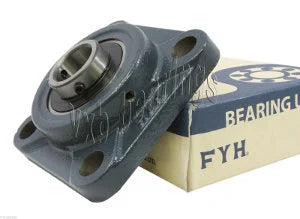

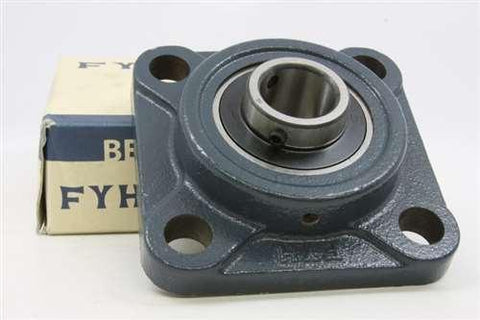

FYH Bearing UCF314-44 2 3/4 Square Flanged Mounted Bearings
$526.99
SKU: Kit11537
UPC: 00193019078136
UPC: 00193019078136
Item: UCF314-44 Bearing
Type: Four bolt Flanged Bearing
Bolt Size: 7/8" inch
Basic Dynamic Load (Cr): 104,000 N
Basic Static Load (Cor): 68,200 N
Type: Four bolt Flanged Bearing
Bolt Size: 7/8" inch
Basic Dynamic Load (Cr): 104,000 N
Basic Static Load (Cor): 68,200 N
| UCF314-44 FYH Bearing Square Flanged Mounted Bearing Cylindrical bore (with set screws) 2 3/4" Inner Diameter |
This heavy duty four-bolt flange unit has a round cartridge on the backside of the flange which allows for precise mounting and alignment.Applications are Rotating drum, rotating roller and when precise mounting accuracy is required.
|

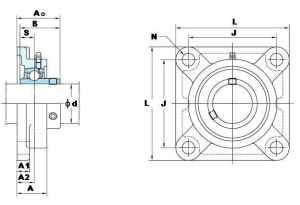

| Dimensions (Inches) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| d | L | A | J | N | A1 | A2 | A0 | B | S |
| 2-3/4" | 8-29/32" | 2-13/32" | 7-1/64" | 63/64" | 31/32" | 1-27/64" | 3-3/16" | 3-5/64" | 1-19/64" |
