FSL40 Linear Guide Ball Screw Stage For CNC Motion 900mm Stroke Work Size Aluminum Rail System G1610 Ballscrew Nema 23 Motorized Actuator Suitable For Precision Milling And Laser Engraving

High-Precision FSL40 Linear Guide with 900mm Stroke
✔️ Aluminum rail, G1610 ballscrew, ±0.02 mm accuracy, 25 kg load, motor included

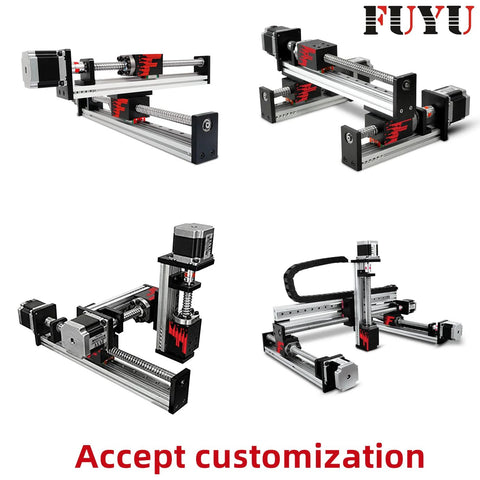

The FSL40 linear guide module is a motorized stage built for precise straight-line motion in CNC setups, automation lines, and precision instruments. It’s commonly used on machine tables for accurate positioning, dispensing, and transfer tasks where smooth, rigid travel matters.

✅ Fully aluminum rail and block design with a G1610 ballscrew for strength and rust resistance.
✅ Accuracy up to ±0.02 mm; horizontal load up to 25 kg; vertical load up to 20 kg.
✅ NEMA 23 (5756) stepper motor included; max speed up to 1200 rpm.
✅ Top speed 255 mm/s no-load; 180 mm/s max with load; 80 mm/s vertical with load.
✅ Stroke options ranging from 50 mm to 1000 mm for CNC devices.
✅ Applications include precise positioning, dispensing, spray painting, cutting, welding, and automatic assembly.

💡 What is a linear guide rail used for in CNC machines and automation setups? A handy choice for precise, straight-line motion in many projects. - precise linear motion for positioning stages - high rigidity with load support for automation - smooth, low-friction travel for long life - works with standard ball screws and motors
