FSK40J Linear Guide Module With Ball Screw Drive For CNC Linear Stage Nema 23 Stepper Motor 500mm Stroke Work Size High Precision Anti Corrosion Rust Resistant Durable Construction G1610 Ball Screw
✔️ Stroke 500mm, ±0.02mm repeatability, 20kg horizontal load

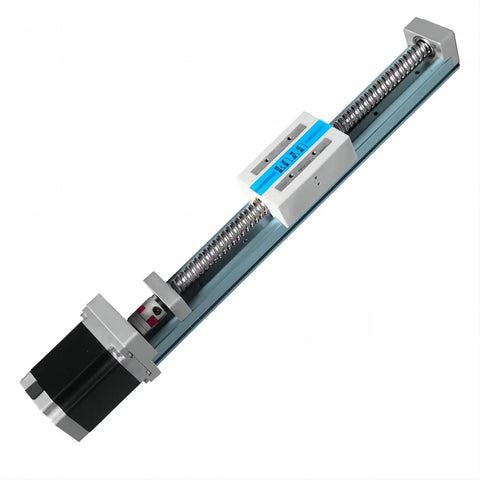

This motorized linear guide module combines a precision rail, a ball screw, and a NEMA 23 stepper motor to form a compact CNC linear stage. It's ideal for tight spaces in automation, milling, engraving, and robotics projects.
Key specs:
✅ Ball screw: G1610, travel up to 1000 mm (39.37 in).
✅ Repeatability: ±0.02 mm (0.0008 in).
✅ Horizontal load capacity: 20 kg (44.1 lb).
✅ Max full-load speed: 200 mm/s (7.87 in/s).
✅ Upside-down mounting: up to 10 kg (22 lb).

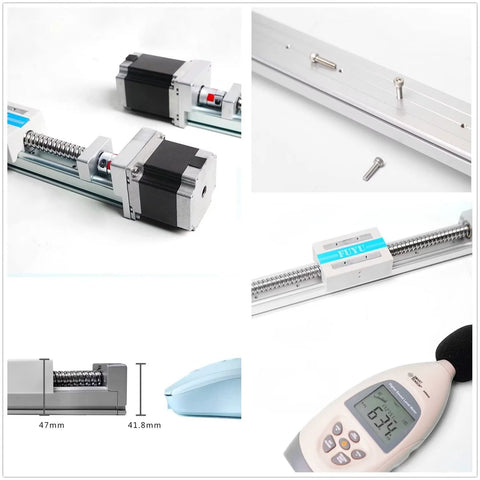

✅ Height: up to 47 mm (1.85 in).
✅ Integrated NEMA 23 motor, speed up to 1200 rpm, noise <65 dB.

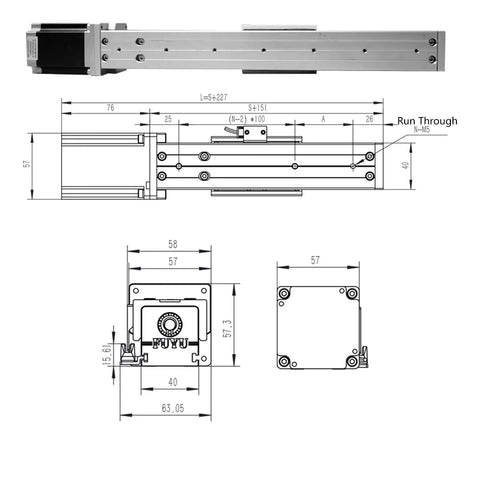

✅ M5 mounting holes on rail and base for easy installation.
💡 What is a CNC linear guide with ball screw used for?
It is a handy setup for precise, smooth motion in automation projects. Handy for compact machines requiring accurate positioning.
- Accurate translation of rotary drive into linear positioning
- Low friction, high stiffness, and repeatable results
- Ideal for milling, engraving, automation, and robotics tasks
- Easy to mount in tight spaces with reliable load handling
