Frameless Inset Soft Close Concealed Cabinet Hinges Titanium Black Ultra Thin Finish Two Hinges Per Pack Self Close From 0 To 45 Degrees With 3D Adjustment And Stop At Any Angle 45 To 105 Degrees Stainless Steel
✔️ Two hinges per pack, soft-close, 3D adjust, 105° limit
These frameless inset concealed cabinet hinges provide a slim, clean look for modern kitchens, bathrooms, and storage setups. They are designed for frameless cabinets, with easy installation and precise 3D adjustment to ensure doors sit perfectly flush.
✅ Cup depth 1.2 cm (0.47")
✅ Cup diameter 3.5 cm (1.38")
✅ Screw hole distance 2.6 cm (1.02")
✅ Door thickness 18-25 mm (0.7-0.98")
✅ Opening angle 105°

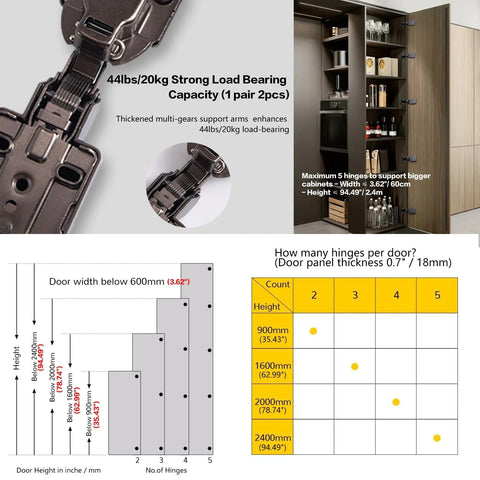

✅ Load per pair 20 kg (44 lbs)

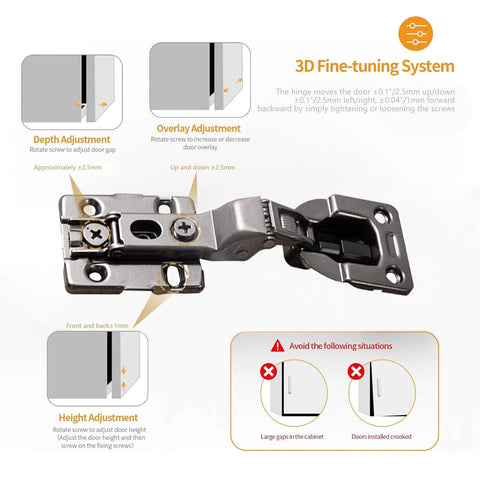

✅ 3D adjustment: ±2.5 mm up/down, ±2.5 mm left/right, ±1 mm in/out
✅ Finish: titanium-plated stainless steel
✅ Includes 6 screws, 1 arm cover, 1 cup cover
✅ Frameless cabinet compatibility
💡 What is a concealed hinge used for in frameless cabinetry and why choose titanium finish?
This handy hardware keeps doors aligned and closing softly in busy kitchens and baths.
- Concealed hinge provides a clean edge with a near-invisible gap on frameless cabinets

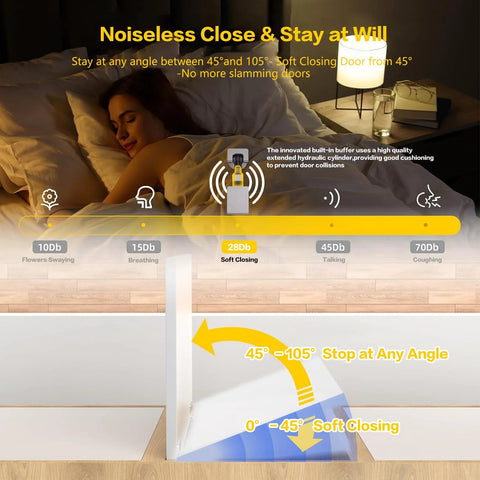

- Soft-close prevents slams and finger pinching, extending door life
- 3D adjustment allows precise alignment in all axes for a perfect flush fit
- Titanium-plated stainless steel finish resists corrosion in humid spaces
