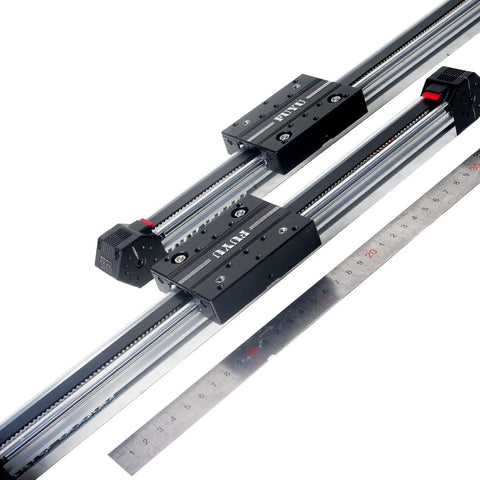

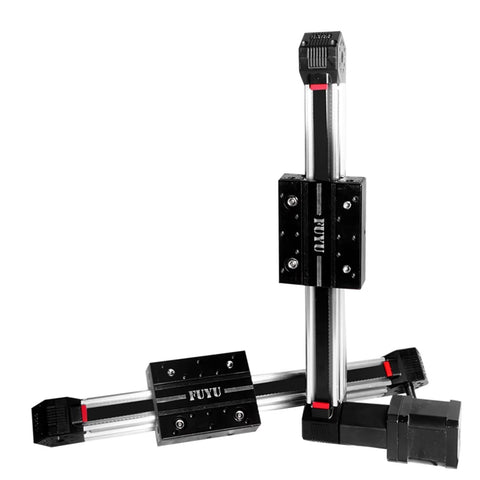

FPB30 Linear Guide Belt Drive Module With Nema 17 Stepper Motor For CNC Rigs 2000mm Stroke Work Size Ultra Slim 30mm Wide Aluminum Rail High Speed Precision System
✔️ 30mm wide aluminum rail, 800mm/s high-speed, ≤65dB
This compact belt-drive linear guide module is built for CNC rigs and automation projects that need a slim footprint and precise motion. It features a 30mm wide aluminum rail and belt drive for fast, smooth travel in a compact package. The system supports a maximum stroke up to 3500mm and ships with the default NEMA 17 (4247) stepper motor, with customization options for stroke, motor, and multi-axis configurations. Load capacity varies by orientation: horizontal up to 8kg, vertical 2kg, side 4kg, and flip 4kg. It offers a service life up to 6000km and can achieve more than 860000 round trips at full speed and stroke.
✅ 30mm wide aluminum rail✅ Belt-driven linear guide with 800mm/s top speed
✅ Noise ≤65dB at full speed
✅ Stroke up to 3500mm; default NEMA 17 motor
✅ Load capacities: Horizontal 8kg; Vertical 2kg; Side 4kg; Flip 4kg
✅ Service life up to 6000km; 860000+ cycles
✅ Customizable stroke, motor, and multi-axis configurations
💡 What is a belt-driven linear guide module used for in CNC rigs?
This handy system keeps motion precise and fast in tight CNC setups.
- belt-driven linear guide module for compact CNC rigs- precise, fast motion for automation projects
- customizable stroke and motor options for multi-axis setups
✝️
