Fourth Axis Rotary Table For CNC Milling And Engraving With 100mm Four Jaw Chuck MT2 Tailstock 65mm Reduction Six To One Aluminum Base 210x168x115mm Dividing Head For Precise CNC Router

Single-Unit 4th Axis Rotary Table for CNC Milling
✔️ 100mm four-jaw chuck, MT2 tailstock, 6:1 reduction, aluminum base

The fourth axis rotary table is a precision device designed for rotating workpieces in CNC milling and engraving workflows. It’s commonly used to add cylindrical, spiral, and curved features to parts in hobby shops and professional machining setups.

✅ Center height: 65 mm (2.56 in)
✅ Total height: 115 mm (4.5 in)
✅ Reduction ratio: 6:1
✅ Base material: Aluminum alloy
✅ Table size: 210 x 168 x 115 mm (8.3 x 6.6 x 4.5 in)
✅ Weight: 7.9 kg (17.4 lb)
✅ Output shaft diameter: 30 mm (1.18 in)
✅ Inner through hole diameter: 22 mm (0.86 in)

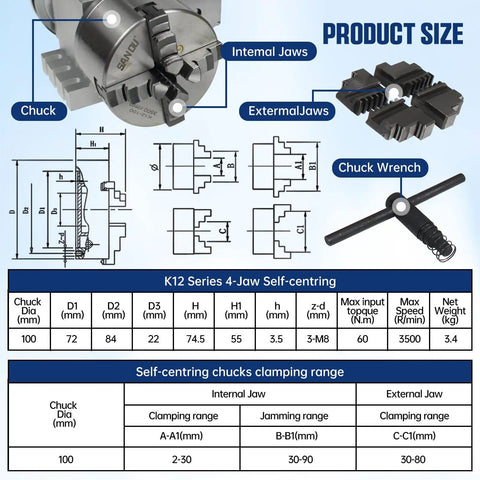

✅ Chuck type: K12-100 4-jaw self-centering, 100 mm
✅ Max input torque: 60 N.m
✅ Max speed: 3500 R/min
✅ External jaw clamping range: 30-80 mm
✅ Internal jaw clamping range: 2-30 mm

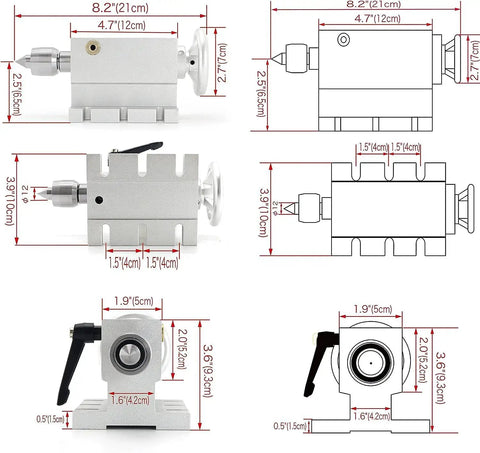

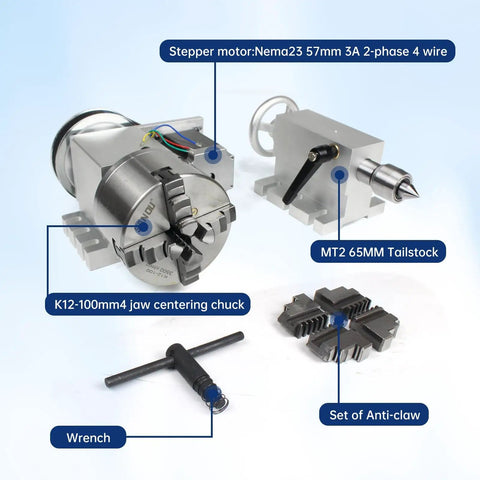

✅ Tailstock: MT2 Morse taper, expansion stroke 45 mm, reach 50 mm
✅ Wrench included for tailstock alignment

💡 What is a fourth axis rotary table used for in CNC milling and engraving?

This handy guide covers common use cases and setup tips.

- Handy for creating cylindrical features, spirals, and curved contours

- Improves roundness and repeatability when engraving on cylindrical stock

- Works with MT2 tailstock and 100 mm four-jaw chuck for secure gripping

- Ideal for hobbyists and pro shops needing precise rotary capabilities
