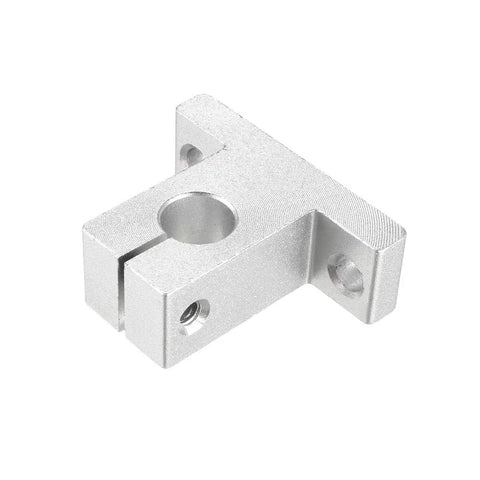

Four Piece SK10 Aluminum Linear Motion Rail Clamps Rod Guides For 10mm Shafts With 5.5mm Mount Holes, Corrosion Resistant Aluminum, High Friction For Precise Smooth Movement, Go To Setup For Linear Rails And Shaft Support

Four Piece SK10 Aluminum Linear Rail Guides for 10mm Shafts
✔️ 4 clamps, 10mm shaft, 5.5mm holes, 42x14x33mm

These aluminum rail clamps are designed to mount with SK10 linear rails, guiding 10mm shafts with smooth, high-precision movement in CNC machines, 3D printers, and measurement rigs.

✅ Model: SK10

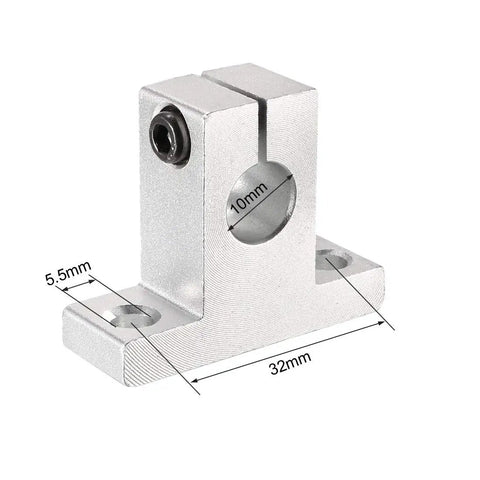

✅ Shaft diameter: 10 mm (0.39 in)
✅ Mount hole diameter: 5.5 mm (0.22 in)
✅ Mount hole distance: 32 mm (1.26 in)
✅ Overall size: 42 mm x 14 mm x 33 mm (1.65 in x 0.55 in x 1.30 in)
✅ Total weight: 100 g (0.22 lb)

Dimension	Metric	Imperial
Shaft diameter	10 mm	0.39 in
Mount hole diameter	5.5 mm	0.22 in
Mount hole distance	32 mm	1.26 in
Overall size (LxWxH)	42 x 14 x 33 mm	1.65 x 0.55 x 1.30 in
Total weight	100 g	0.22 lb

These aluminum rail clamps are designed to mount with SK10 linear rails, guiding 10mm shafts with smooth, high-precision movement in CNC machines, 3D printers, and measurement rigs.

💡 What is a rail clamp guide used for in linear motion systems?

These handy clamps keep shafts aligned and support smooth travel in compact setups.

• handy for CNC machines, 3D printers, and coordinate measuring rigs
• improves repeatability and reduces wear in guides
• easy mounting with standard 5.5 mm holes on SK10 rails
