Four Inch High Speed 12V Linear Actuator With 88 Lbs Load Capacity IP65 Waterproof One Point Three Four Inches Per Second Travel Four Inch Stroke Retracted Nine Inches Extended Thirteen Inches Includes Mounting Brackets Heavy Duty Motion For DIY Projects
✔️ 12V DC, 4in stroke, 9in retracted, 13in extended, incl. 2 brackets
This rugged 12V DC linear actuator delivers 400N (88lb) of push/pull with a 4-inch stroke. Constructed from aluminum alloy with a four-corner fixed base, it offers solid stability and load capacity for DIY projects, outdoor installations, and marine setups. It’s IP65-rated for water resistance, includes two mounting brackets, and features a built-in limit switch and self-locking function for safe, automated stops at both ends.

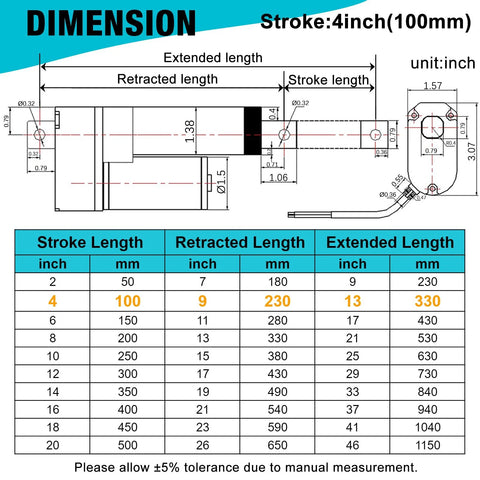

✅ Voltage: 12V DC; Stroke: 4 in (100 mm); Retracted: 9 in (230 mm); Extended: 13 in (330 mm)

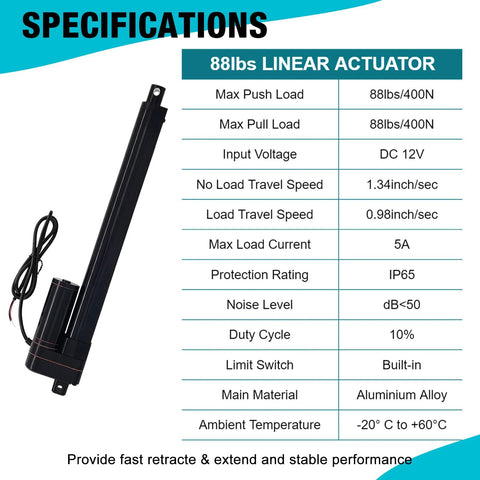

✅ Load capacity: 88 lb (400 N); No-load speed: 1.34 in/s (34 mm/s)

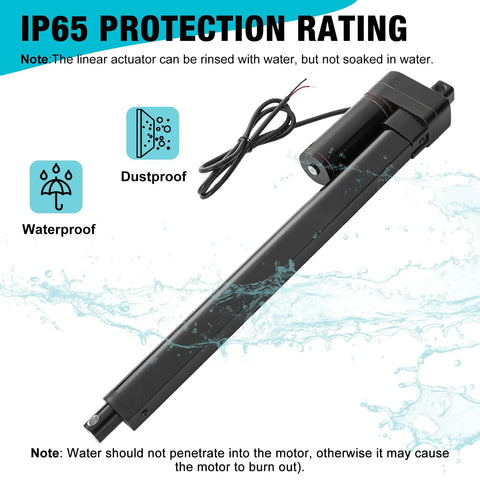

✅ Current draw: up to 5 A; Power: 40-50 W; IP65 protection; Aluminum housing
✅ Includes: 1 actuator + 2 mounting brackets for quick setup
💡 What is a linear actuator used for in DIY projects? This handy device converts rotational motion into linear motion to lift, tilt, open, or adjust components in a variety of setups. - Handy for automatic doors, adjustable furniture, bed frames, and marine applications - Provides controlled stroke, speed, and built-in limit switches for safe operation - IP65-rated models handle outdoor use on boats, decks, and RVs
