Four Channel DMX512 Constant Voltage RGB And RGBW Decoder And Din Rail Mounted Dimming Controller 5-24V DC, 4A Per Channel, DMX Addressable With Digital Display, Standalone Or DMX Control For RGB Lighting Projects

Rail-mount 4-channel DMX512 RGB/RGBW decoder (1 unit)

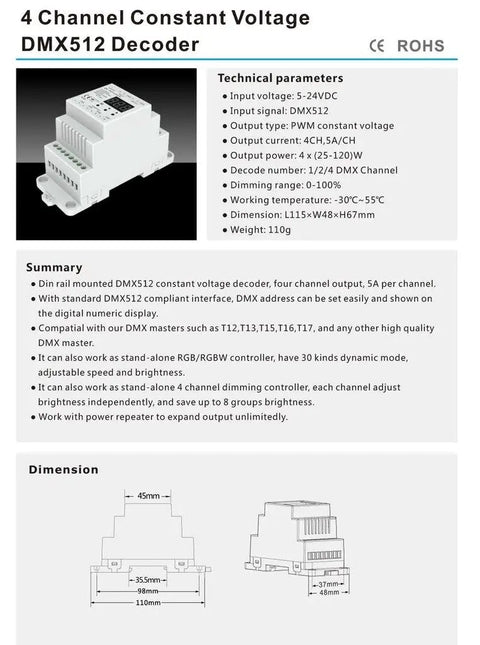

✔️ 4 channels at 4A per channel, 5-36V input, DMX addressable

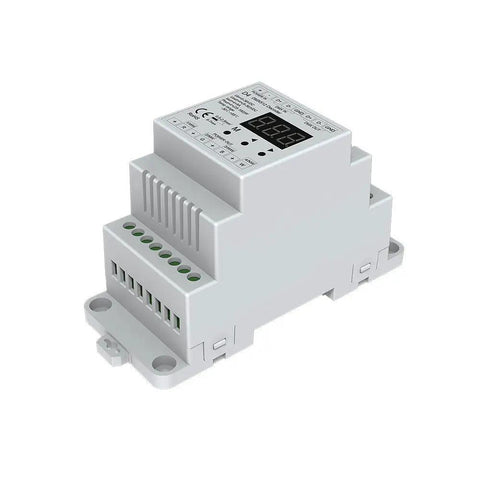

This DIN rail mounted DMX512 constant voltage decoder drives four PWM outputs for RGB and RGBW LEDs, ideal for architectural lighting, stage setups, and LED strip installations. It can operate as a standalone controller or be DMX-driven for synchronized color effects.

✅ Four PWM outputs, 4A per channel for strong LED drive
✅ 5-36V DC input, DMX512 interface with digital address display

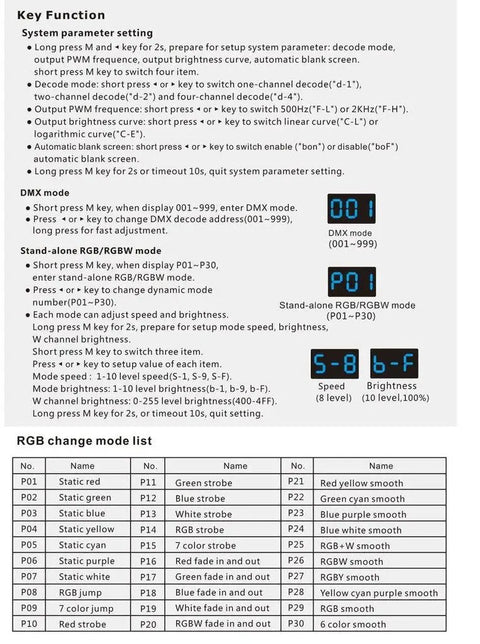

✅ Standalone mode with 30 dynamic effects, adjustable speed and brightness
✅ Independent 4-channel dimming, stores up to 8 brightness groups
✅ Expandable with a power repeater for extended output

💡 What is a DMX512 decoder used for in RGB lighting projects?

In simple terms, it converts DMX512 data into PWM signals to drive RGB/RGBW LEDs, enabling precise color mixing and brightness control across fixtures.

• handy DMX512 decoder for RGB lighting in DIN rail installations
• works in standalone or DMX-controlled mode for flexible projects
• stores up to 8 brightness groups for quick scene recall
• offers 30 dynamic lighting modes with adjustable speed
