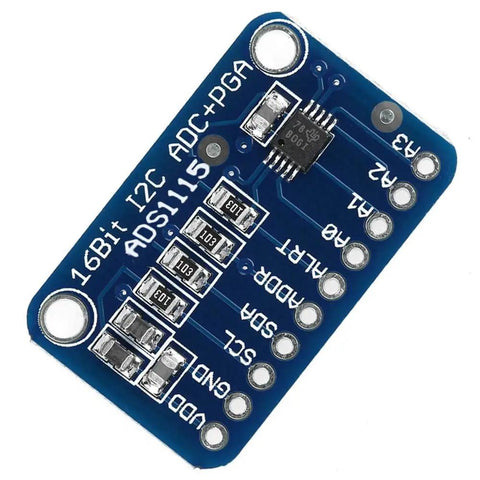

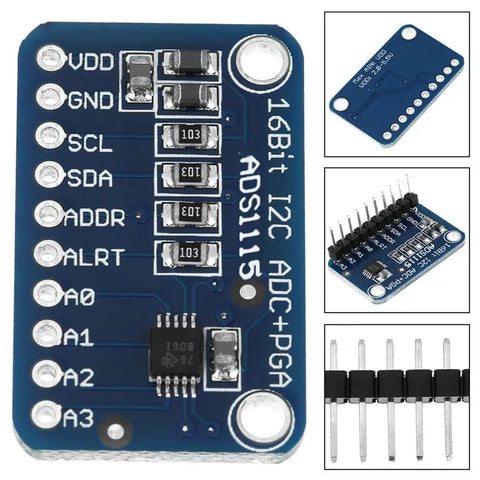

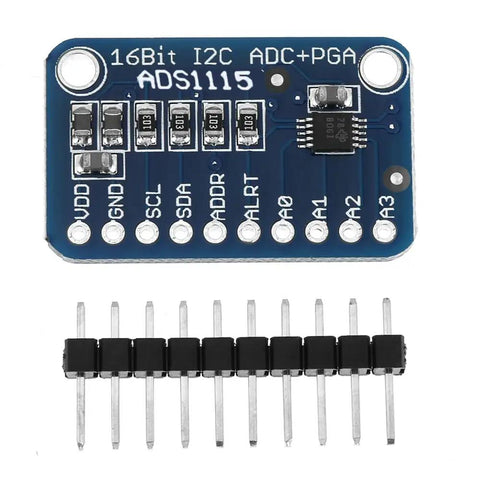

Four Channel 16 Bit I2C ADC Module With Programmable Gain Amplifier For Microcontrollers High Precision Analog Front End ADS1115 Compatible 2V To 5.5V Supply Up To 860 Samples Per Second
✔️ 4 inputs (4 single-ended or 2 differential), PGA x16, 28x18 mm (1.1x0.7 in)
The 16-bit I2C ADC development board provides precise analog-to-digital conversion for microcontroller projects. It offers 4 single-ended or 2 differential input channels, a programmable gain amplifier, and I2C interface for easy sensor integration and data logging.
✅ 16-bit resolution up to 860 samples per second
✅ 4 single-ended or 2 differential inputs
✅ Programmable gain amplifier up to x16
✅ I2C interface with 7-bit addresses selectable 0x48-0x4B
✅ Supply range 2.0-5.5 V
✅ Breakout with ferrites for noise reduction
💡 What is a four-channel I2C 16-bit ADC with programmable gain amplifier used for in hobbyist sensor projects?
This handy front-end lets you capture precise analog signals from sensors with a microcontroller for data logging and control.
- 16-bit precision up to 860 samples per second for accurate readings
- 4 input configurations: 4 single-ended or 2 differential
- Built-in programmable gain amplifier up to x16 to boost weak signals
- I2C bus with selectable addresses 0x48-0x4B to run multiple modules
