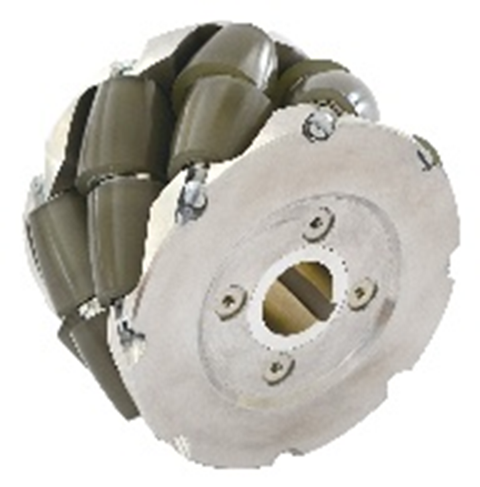

FM21K-150-16U2-R-N Right 150mm Mecanum Wheel, 1 Piece, 30mm Keyway Bore, 300 kgf Load Capacity, Aluminum and Steel Frame with Polyurethane Rollers for AGV, AMR, Construction, and Medical Robots

150mm right mecanum wheel for mobile robots
✔️ 1 piece, 150mm OD, 30mm keyway bore, 300 kgf load rating

Includes 1 piece FM21K-150-16U2-R-N right mecanum wheel. This handy mobile robot wheel is typically used on AGVs, AMRs, construction robots, and medical devices that need controlled multi-direction movement. Verify the right-side setup, keyway bore, mounting method, load rating, and wheel dimensions before ordering.

✅ SKU and pack: FM21K-150-16U2-R-N, 1 piece
✅ Wheel type: Right mecanum wheel

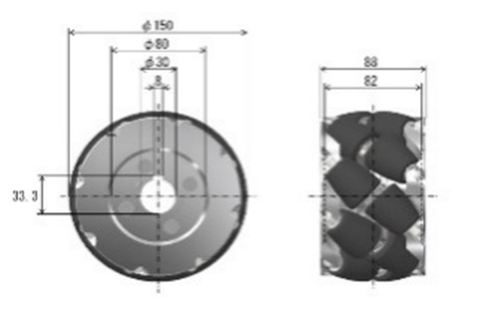

✅ Outer diameter: 150mm
✅ Inner diameter and bore: 30mm keyway bore
✅ Load capacity: 300 kgf per unit
✅ Frame material: Aluminum and steel
✅ Roller material: Polyurethane

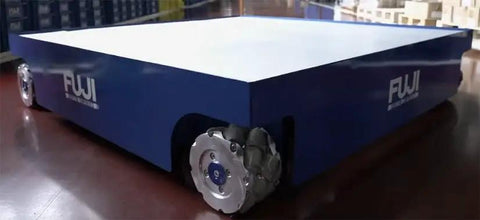

✅ Typical use: AGVs, AMRs, construction robots, and medical devices

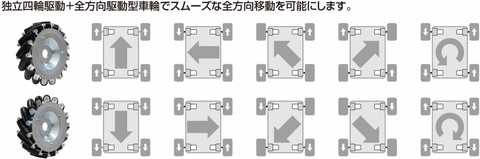

💡 What should you check before choosing a right mecanum wheel for an AGV or AMR? A careful match helps the wheel provide the intended directional control and steady handling for robotic equipment.
Confirm the right wheel type matches the robot drive layout
Match the 150mm diameter and 30mm keyway bore to the axle setup
Check the 300 kgf load rating and polyurethane roller configuration

✝️
