Flexible Magnetic Shielding Foil Pro Grade 0.010 Inch Thick 8x12 Inch Sheet For Sensitive Electronics Low Frequency H Field Shield Up To 1kHz AC Or Static DC Annealed Nickel Molybdenum Iron Blend Not For Neodymium Magnets

Pro Grade Flexible Mu-Metal Shielding Foil - 8x12in Sheet

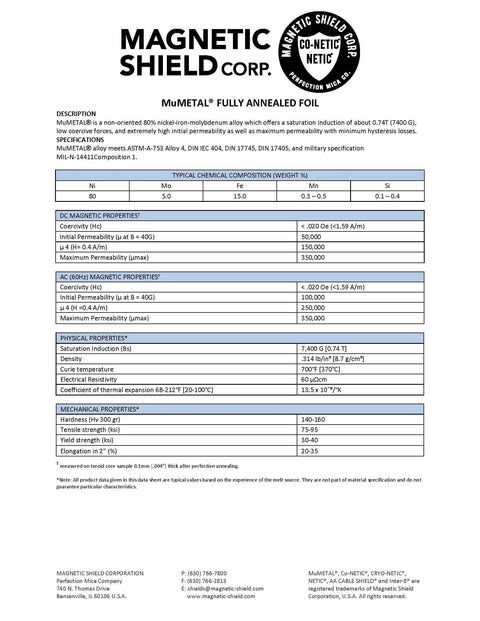

✔️ 80% Ni, 5% Mo, 15% Fe; 0.010 in (0.25 mm) thick, 8x12 sheet foil, annealed

Flexible shielding foil made from a Mu-metal alloy designed to protect sensitive electronics from stray magnetic fields. It's commonly used on enclosures, PCBs, cables, and precision instruments in low-frequency EMI environments.

✅ 8x12in sheet (203.2 mm x 304.8 mm) with 0.010 in (0.25 mm) thickness
✅ Composition: 80% Ni, 5% Mo, 15% Fe; fully annealed for maximum permeability
✅ Shields low-frequency H-fields up to 1 kHz AC or static DC
✅ Adhesive backing for easy mounting; not for shielding permanent magnets

💡 What is EMI shielding foil used for in electronics and how does it work?

This handy shield helps reduce stray magnetic interference and protect sensitive components.

• EMI protection for enclosures, boards, and sensors
• Flexible, easy-to-cut foil that fits curved surfaces
• Annealed Ni-Fe-Mo alloy with high permeability
• Not guaranteed to shield all cases or permanent magnets
