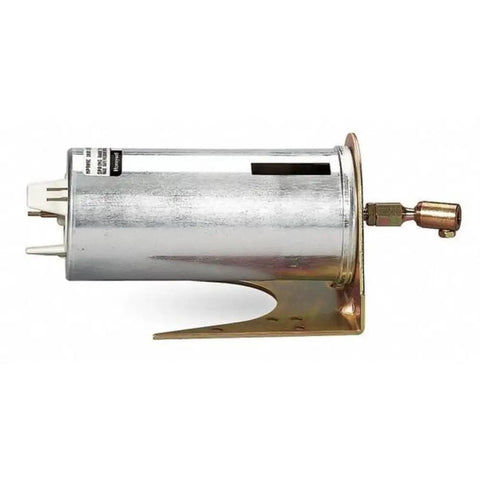

Fixed Linear Pneumatic Actuator For HVAC Controls And Thermostats, 4 Inch Stroke, 3 To 13 PSI Operating Range, 29 PSI Max Air Pressure, Heavy Duty Industrial Pneumatic Actuator For Ductwork, Built Tough Made In USA

Fixed Linear Pneumatic Actuator for HVAC, 4in Stroke
✔️ Stroke 4 in; 3-13 psi range; 29 psi max; fixed mounting included

This fixed linear pneumatic actuator is designed for HVAC control dampers in ductwork and mixing boxes, delivering reliable, precise motion in industrial environments. Built with a heavy-duty stance and included mounting hardware for quick, secure installation.

✅ Stroke: 4 in (101.6 mm)
✅ Operating PSI range: 3-13 psi (0.21-0.90 MPa)
✅ Max air pressure: 29 psi (0.20 MPa)
✅ Length x Width x Height: 17 in x 6 3/8 in x 6 7/8 in (431.8 mm x 162 mm x 174.6 mm)
✅ Net force @ 0 PSI: 19.8 lb (9.0 kgf)
✅ Net force @ 18 PSI: 3.3 lb (1.5 kgf)
✅ Mounting: Includes fixed external mounting bracket and ball joints

💡 What is a fixed linear pneumatic actuator used for in HVAC systems? This handy device moves dampers and valves to regulate airflow with air pressure. - Handy for damper control in ductwork - 3-13 psi control range for precise actuation - 29 psi max air pressure for robust performance - Includes mounting bracket and ball joints for quick install
