Five To One Planetary Gearbox For Nema 23 Stepper Motor DIY Friendly, Compatible With Nema 24, 60 To 74mm Body, Backlash 15 Arcmin, Input Shaft 10mm Diameter And 31mm Length, Output Shaft 14mm, Includes Screws Plugs And Key For CNC 3D Printer Lathe

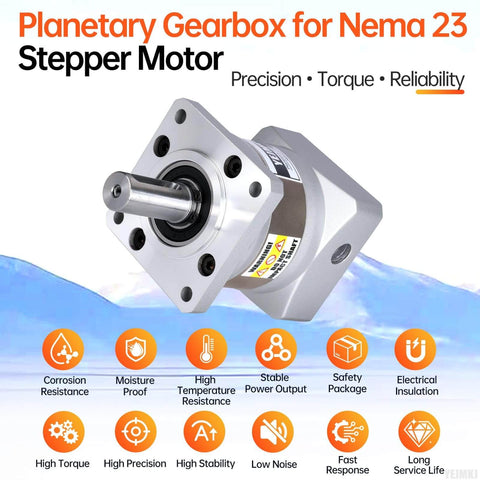

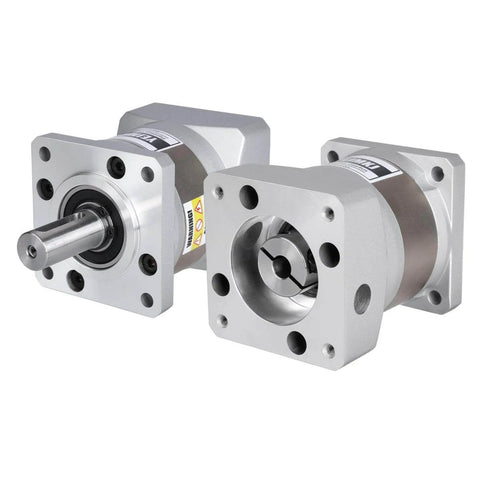

Five-to-One Planetary Gearbox for NEMA 23/24 Motors

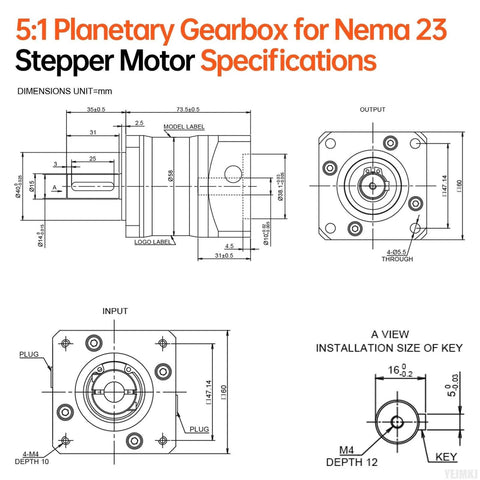

✔️ 5:1 ratio planetary gearbox with Ø10mm input shaft, single unit

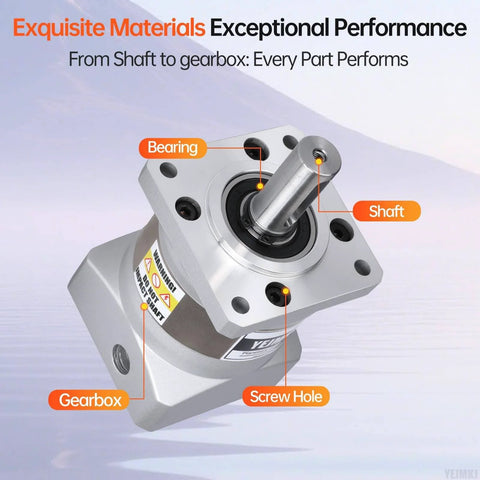

This compact five-to-one planetary gearbox is designed for NEMA 23/24 stepper motors, offering strong torque for CNC, robotics, and automation projects. Its precision gear set and rugged housing ensure smooth, quiet operation and reliable positioning under load.

✅ Backlash ≤ 20 arcmin
✅ Nominal output torque 30 Nm (4248 oz-in)
✅ Max input speed 6000 RPM
✅ Efficiency 94%
✅ IP54 waterproof, -20℃ to +150℃
✅ Weight 235 g

💡 What is a planetary gearbox used for in automation projects? A handy overview of typical use cases: - Provides high torque in compact form for CNC machines - Improves position accuracy in robotics - Reduces speed while preserving power transfer - Compatible with standard motor shafts like Ø10mm
