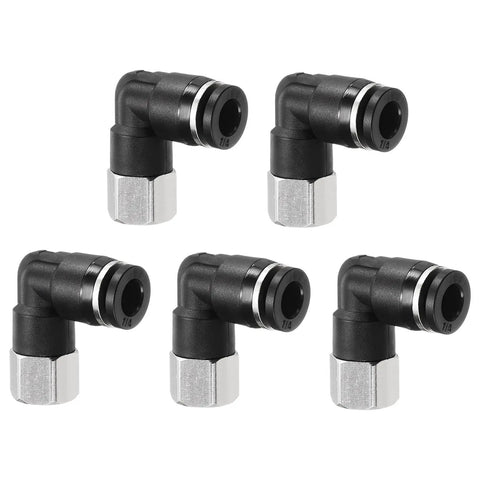

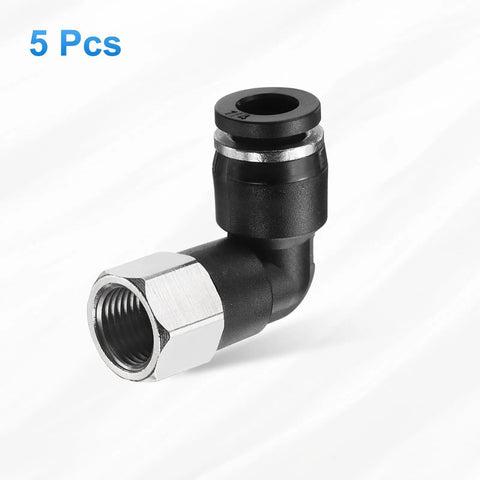

Five Pack Pro Grade Pneumatic Female Elbow Fittings One Quarter Inch Tube Outer Diameter By One Eighth Inch NPT 90 Degree Push To Connect Air Tubing Quick Connect For Pneumatic Machines Black

Five-Pack Pro-Grade 1/4 Inch Pneumatic Elbow Fittings
✔️ 1/4 in tubing, 1/8 in NPT, 90-degree push-to-connect, black

These quick-connect pneumatic elbow fittings provide a compact right-angle connection for 1/4 inch tubing with 1/8 inch NPT threads. They are commonly used in pneumatic systems, automated machinery, and control valves to route air lines in tight spaces.

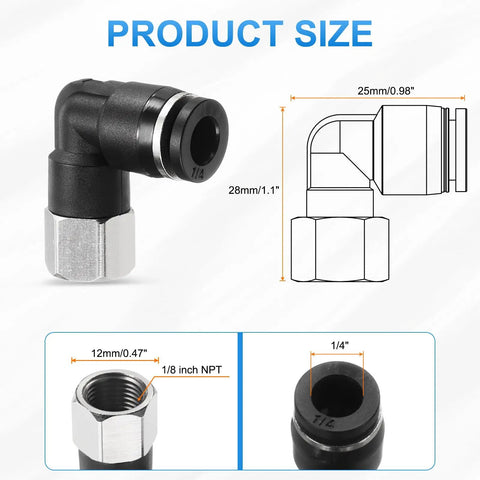

✅ Pipe diameter: 1/4 in (6.35 mm)
✅ Thread size: 1/8 in NPT
✅ Lengths: pipe side 25 mm (1.0 in); thread side 28 mm (1.1 in)
✅ End diameter: 12 mm (0.47 in)
✅ Material: PBT plastic and brass
✅ Temperature range: -40°C to 60°C (-40°F to 140°F)
✅ Working pressure: 0-1 MPa (0-145 psi); ultimate pressure: 1.6 MPa (232 psi)

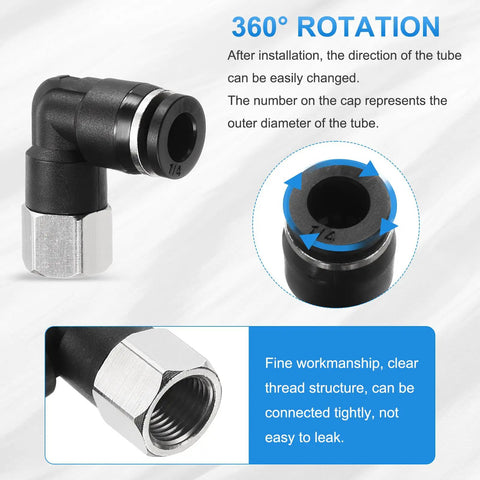

✅ Rotation: 360 degrees
✅ Color: Black

💡 What is a push-to-connect pneumatic elbow fitting used for?

- Handy for compact, right-angle air routing in tight spaces - Supports quick connection and disconnection for maintenance - Fits 1/4 in tubing with 1/8 in NPT threads in pneumatic systems ✝️
