Fiber Optic Cleaver For FTTH With 16 Face Tungsten Blade Delivers 48,000 Cuts And Sub 0.5 Degree Precision, 125 Micron Bare Fiber, 9 To 16 mm Length, Auto Scrap Box, Dual Action Manual, Pro Grade End Face Quality
✔️ 48,000-cut tungsten blade, <0.5° precision, 125 µm bare fiber
This pocket-size, pro-grade FTTH fiber optic cleaver is built for field techs and on-site terminations in data centers, labs, and training rooms. It offers a compact, rugged design with a 3-in-1 fixture that handles 0.25 mm, 0.9 mm, and 3.0 mm fibers and jackets, plus a handy auto scrap box for a clean workbench.

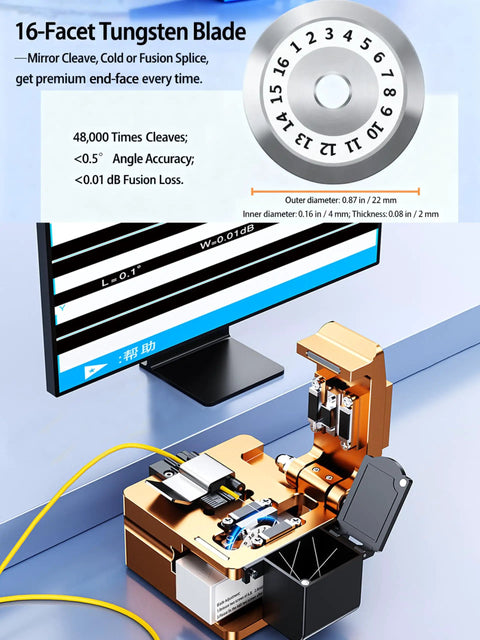

✅ Blade & precision: 16-face tungsten steel blade delivers mirror-smooth end-faces; 48,000 cuts and <0.5° angle accuracy.

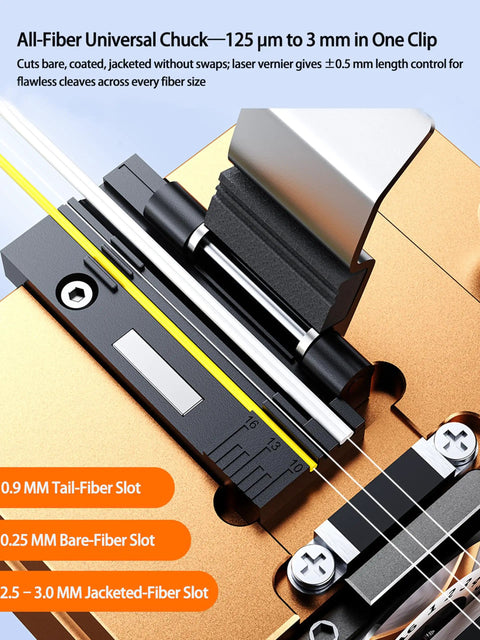

✅ Adaptive Fiber Guidance Suite: Triple-precision V-channels (0.25 mm bare fiber, 0.9 mm tail fiber, 2.5-3 mm jacket slots) self-align 125 µm bare, 250/900 µm primary-coated and jacketed fibers without adapter swaps; laser-engraved vernier (±0.5 mm) removes external length stops, while a shock-absorbing base isolates hand tremors.
✅ 3-in-1 fixture: Accepts 0.25 mm, 0.9 mm and 3.0 mm single-core fibers, jumpers, tail fibers and standard fiber optic cables, covering every common cutting need. An integrated, precision-etched scale eliminates the need for a separate length stop.

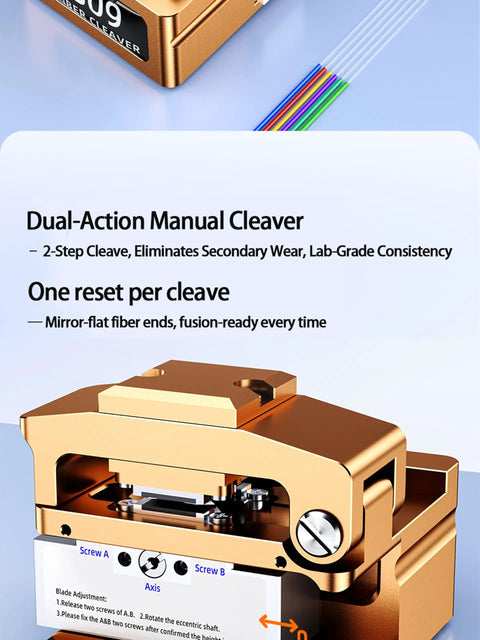

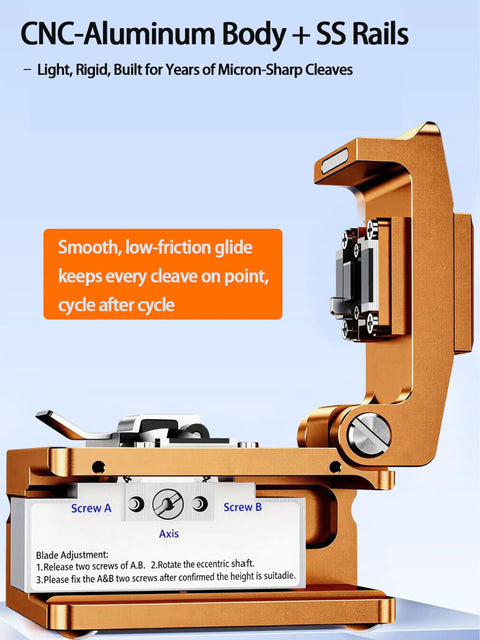

✅ Built to last: CNC-m milled aluminum chassis with stainless-steel guide rails; light but rigid, low-friction slide preserves micron-level accuracy through thousands of cycles. Built-in hex key pocket for quick field adjustments.

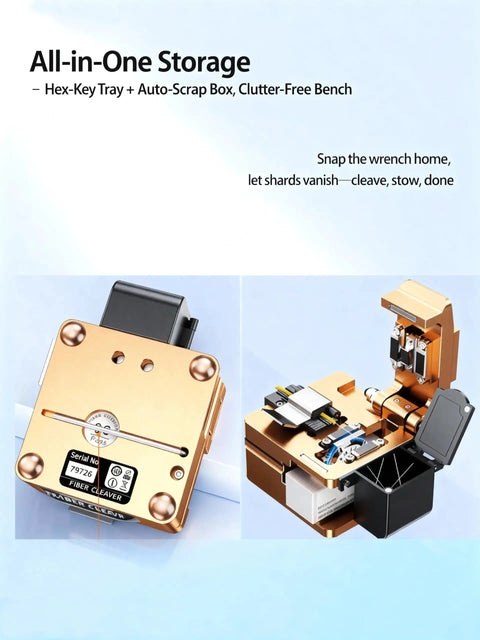

✅ Waste management: Integrated auto-scrap box collects fiber shards; no cleanup tools needed, keeps bench safe.

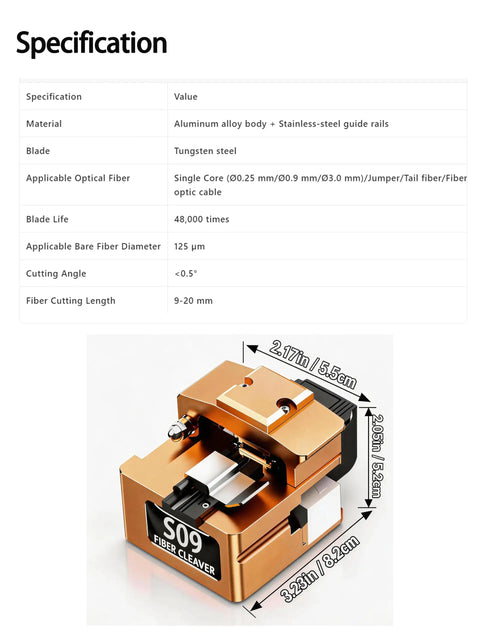

✅ Portable and ready for field work: 3.23"×2.17"×2.05" (82×55×52 mm) and 0.25 lb (255 g) ideal for FTTH fusion, data-center patching, lab R&D, training programs.
💡 What is a fiber optic cleaver used for in FTTH installations? This handy tool helps technicians terminate fiber with clean, repeatable end faces. - Handy for on-site fiber terminations - Ensures clean, fusion-ready end faces for splices - Compatible with 0.25/0.9/3.0 mm fibers and jackets - Auto-scrap box keeps the bench tidy
