VXB

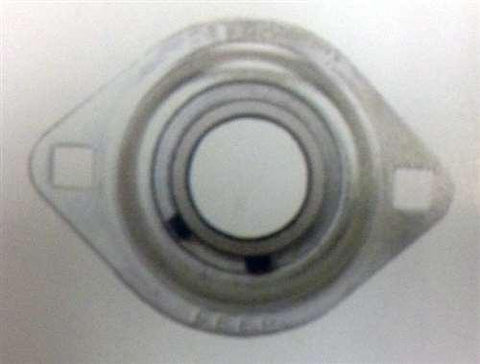

FHSR204-20mm-2FM Bearing Flange Pressed Steel 2 Bolt 20mm Bearings
$60.99
SKU: Kit19989
UPC: 00193019272640
UPC: 00193019272640
Item: FHSR204-20mm-2FM Bearing
Type: Flange Pressed Steel 2 Bolt Ball Bearing
Shaft Diameter: 20mm
Bolt Size: 5/16" Inch
Bearing No: FHSR204-20mm
Type: Flange Pressed Steel 2 Bolt Ball Bearing
Shaft Diameter: 20mm
Bolt Size: 5/16" Inch
Bearing No: FHSR204-20mm
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|
FHSR204-20mm-2FM Flange Pressed Steel 2 Bolt Ball Bearing Set Screw Locking 20mm Inner Diameter |
FHSR204-20mm-2FM Flange Pressed Steel 2 Bolt Ball Bearing, Bearing is one piece and light duty pressed steel housing, bearing is flush mount style ideal in tight mounting areas, bearing is zinc plated stamped steel, bearing is narrow inner ring, Standard seal is RST tight riding, full cover, metal shroud seals.
|

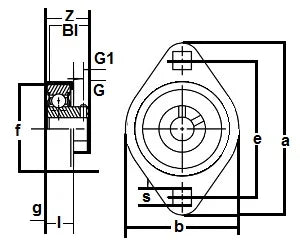

| Dimensions (mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| a | e | b | g | s | l | Z | BI | G1 | G | f |
| 90.5 | 71.4 | 66.7 | 1.9 | 8.7 | 15 | 26.9 | 25 | 5.7 | 4.5 | 47 |
