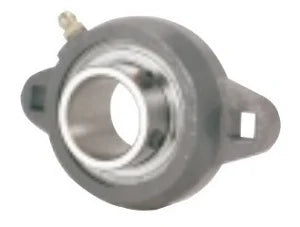

Flange Ball Bearing 30mm Inner Diameter Ductile Iron 2 Bolt Flange Mount Eccentric Locking Collar Standard Duty Unit Model FHFX206 30mmG For Industrial Machinery Suitable For Conveyors Gearboxes Automation Equipment
✔️ 30mm inner diameter, 2-bolt flange, ductile iron housing
Flange mounted two bolt unit ball bearing made from ductile iron, designed for strength and relubrication. This style is common for conveyor rollers, drive shafts, and machine beds where a compact, sturdy support is needed.
✅ Bearing type: flange mounted 2-bolt unit with eccentric locking collar✅ Inner diameter: 30 mm; shaft diameter: 30 mm; bolt size: 3/8 in
✅ Housing material: ductile iron with RST seal and full cover
✅ Relubricatable design for long service life
✅ Seal: RST tight riding with metal shroud

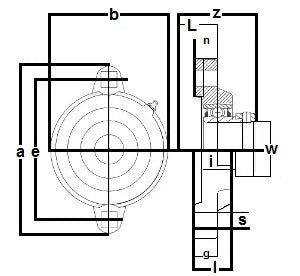

| Parameter | Dimension |
|---|---|
| a | 112.7 mm (4.43 in) |
| e | 90.5 mm (3.56 in) |
| i | 12.1 mm (0.48 in) |
| g | 11.9 mm (0.47 in) |
| l | 10.7 mm (0.42 in) |
| s | 10.3 mm (0.41 in) |
| b | 78.6 mm (3.09 in) |
| Z | 38.8 mm (1.53 in) |
| L | 35.7 mm (1.41 in) |
| n | 9 mm (0.35 in) |
| W | 44.5 mm (1.75 in) |
| Shaft diameter | 30 mm (1.18 in) |
| Bolt size | 3/8 in (9.53 mm) |
FHFX206-30mmG Flange Ductile 2 Bolt Unit Ball Bearing, Eccentric Locking Collar with a 30 mm inner diameter. The bearing is standard duty and high strength ductile iron, relubricatable, with a RST tight riding seal and metal shroud for protection against contaminants. This unit is ideal for compact, sturdy support on shafts in industrial setups.
💡 What is a pillow block bearing used for in machinery setups? Pillow block bearings provide support for rotating shafts and enable simple alignment in a wide range of equipment. - pillow block bearing uses for conveyors and automation - easy mounting and secure shaft support - maintenance tips for seals and lubrication
