VXB

Female Rod End PHSB6 3/8 Right hand Bearing

$19.99
SKU: Kit12090
UPC: 00193019035665
Item: PHSB6 Bearing
Type: Female Rod Ends
Thread Size: 3/8" UNF
Ball diameter: 23/32
Quantity: One Bearing

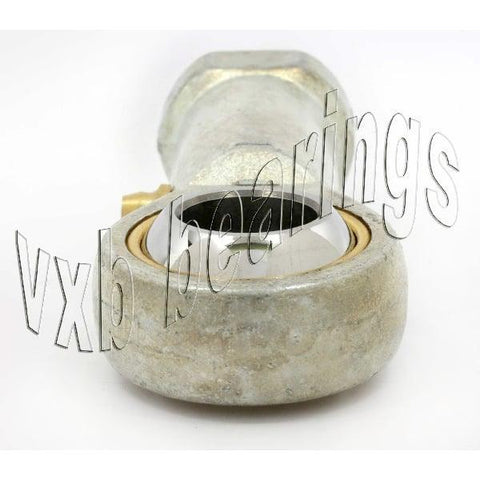

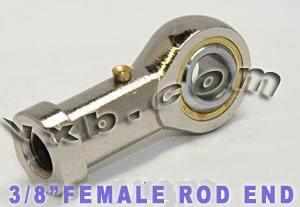

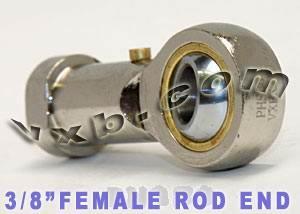

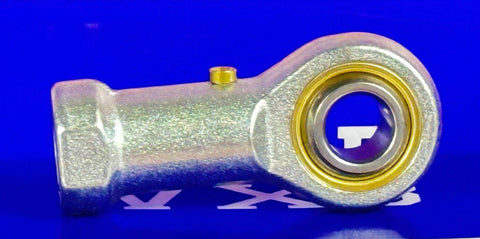

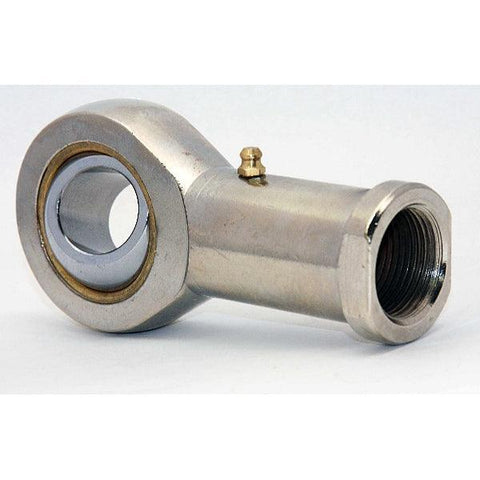

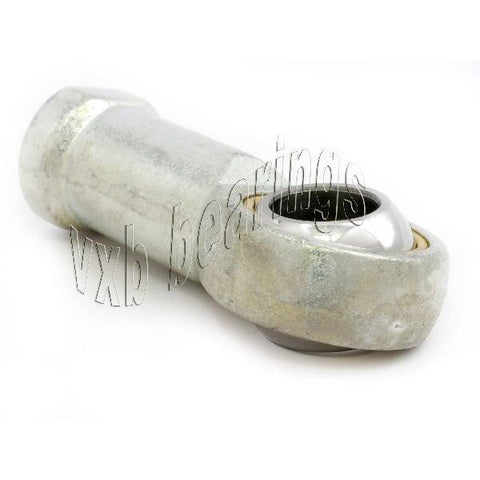

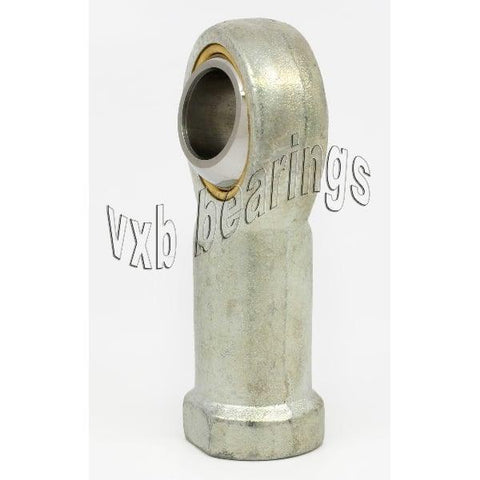

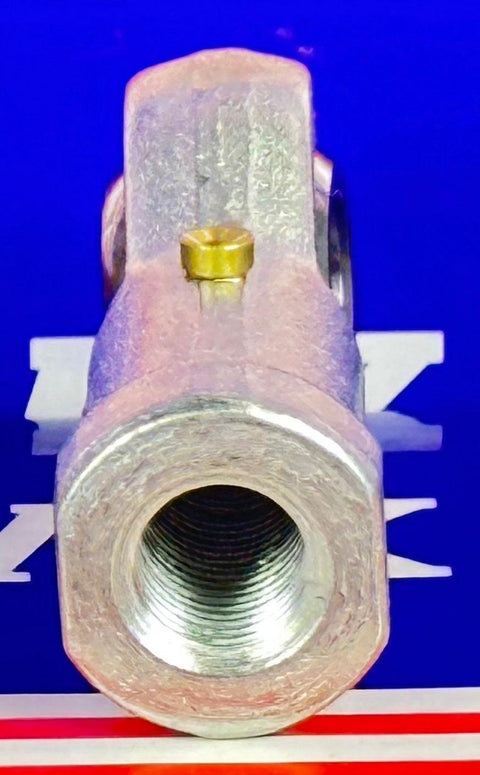

Female Rod End
Right Hand PHSB6

Female Rod End PHSB6, Right hand Works with 3/8" Shafts, they are marked PHSB6 with 3/8" inner diameter, the internal thread size is 3/8", Here is the interchange designation in every brand:

  • Item: PHSB6 Bearing
  • Type: Female Rod Ends
  • Thread Size: 3/8" UNF
  • Ball diameter: 23/32"
  • Quantity: One Bearing
  • Dynamic Load Rating: 9.4 KN
  • Static Load Rating: 10 KN

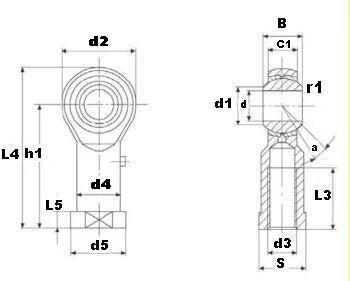

Dimensions (Inches) a
d B r1s C1 d1 d2 d3
UNF 2B		 h1 L3 L4 L5 d4 d5 S
3/8" 1/2" 0.5mm 13/32" 13.13mm 1" 3/8-24 1-5/8" 15/16" 2-1/8" 1/4" 9/16" 11/16" 9/16" 9
