VXB
Female Rod End PHSB16L 1 Left hand Bearing
$119.99
SKU: Kit12097
UPC: 00193019208106
UPC: 00193019208106
Item: PHSB16L Bearing
Type: Female Rod Ends
Thread Size: 1 1/4" UNF
Ball diameter: 1-7/8
Quantity: One Bearing
Type: Female Rod Ends
Thread Size: 1 1/4" UNF
Ball diameter: 1-7/8
Quantity: One Bearing
| Female Rod End Left Hand PHSB16L |
|
Female Rod End PHSB16L, Left hand Works with 1" Shafts, they are marked PHSB16L with 1" inner diameter, the internal thread size is 1", Here is the interchange designation in every brand:
|
|
|

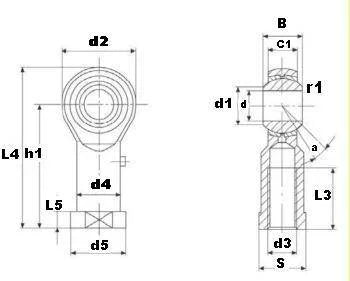

a | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | B | r1s | C1 | d1 | d2 | d3 UNF-2B |
h1 | L3 | L4 | L5 | d4 | d5 | S | |
| 1" | 1-3/8" | 0.5mm | 1" | 32.23mm | 2-3/4" | 1 1/4-12 | 4-1/8" | 2-1/8" | 5-1/2" | 11.07mm | 1-1/2" | 1-3/4" | 1-1/2" | 14 |
