VXB

Female Rod End Heim 4mm PHS4L Left hand Bearing

$9.99
SKU: PHS4L
UPC: 00193019068120
Item: PHS4L Left Bearings
Type: Rod Ends Heim Joints Bearing
Quantity: One Bearing
Dynamic load Capacity: 170 KGF
Static load Capacity: 190 KGF
Female Rod End PHS4L
One Left Hand



One Left Hand Female Rod End PHS4L Works with 4mm Shafts, inner diameter is 4mm, the internal thread size is M4x0.7, Here is the interchange designation in every brand:

  • Item: PHS4L Bearings
  • Type: Rod Ends Heim Joints Bearing
  • Quantity: One Bearing
  • Dynamic load Capacity: 170 KGF
  • Static load Capacity: 190 KGF

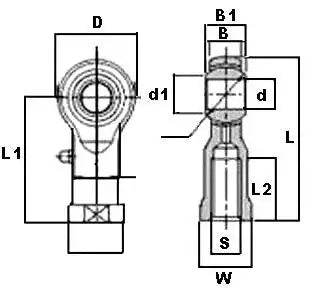

Dimensions (mm)
d Thread
S
D B B1 d1 L L1 L2
4 M4x0.7 14 5.25 7 6.5 31 24 8
