VXB

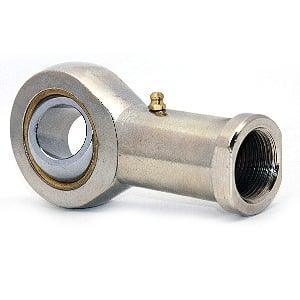

Female Rod End Heim 3mm PHS3 Right hand Bearing

$3.88 $9.99you save $6.11
Quantity
-
+
Save More When You Buy More
  • Quantity exceeds stock. Available quantity may still be added to cart.
 More payment options
SKU: PHS3
UPC: 00193019008003
Item: PHS3 Bearings
Type: Rod Ends Heim Joints Bearing
Quantity: One Bearing
Dynamic load Capacity: 170 KGF
Static load Capacity: 190 KGF

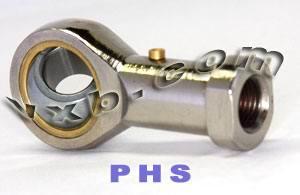

Female Rod End PHS3
One Right Hand

One Right Hand Female Rod End PHS3 Works with 3mm Shafts, inner diameter is 3mm, the internal thread size is M3x0.5, Here is the interchange designation in every brand:

  • Item: PHS3 Bearings
  • Type: Rod Ends Heim Joints Bearing
  • Quantity: 1 Bearing
  • Dynamic load Capacity: 170 KGF
  • Static load Capacity: 190 KGF

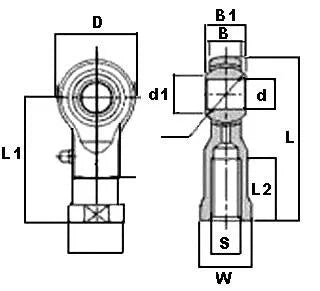

Dimensions (mm)
d Thread
S		 D B B1 d1 L L1 L2
3 M3x0.5 12 4.5 6 9 33 36 27
