Female Rod End PHS6L Left Hand Bearing For 6mm Shafts With 6mm Inner Diameter M6x1 Thread High Load Rating Static 710 Kgf Dynamic 430 Kgf Includes One Bearing Cross Reference PHS6L For Easy Replacement In Machinery And Robotics

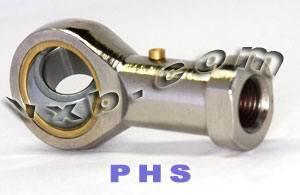

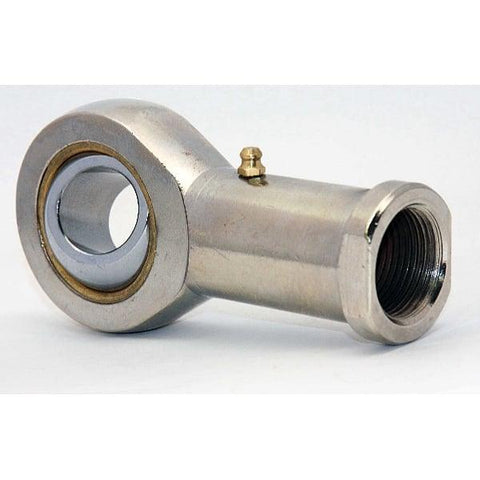

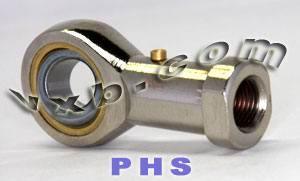

Left-Hand 6mm Female Rod End Bearing PHS6L, Single Bearing
✔️ Inner diameter 6mm, M6x1 thread, LH female rod end

This left-hand female rod end bearing is built for 6 mm shafts and is commonly used in robotics, automation assemblies, and compact linkage systems where a pivoting joint is required.

✅ d = 6 mm bore (0.24 in)
✅ Thread size M6x1
✅ Outer diameter D = 18 mm (0.71 in)
✅ Width B ≈ 6.75 mm (0.27 in)
✅ Inner shoulder d1 = 9 mm (0.35 in)
✅ Overall length L = 39 mm (1.54 in)
✅ L1 = 30 mm (1.18 in), L2 = 14 mm (0.55 in)
✅ Static load capacity 710 KGF
✅ Dynamic load capacity 430 KGF
✅ Left-hand orientation LH
✅ Cross-reference: ELGES GIKFR 6 PB; SIKAC 6 M; HIRSCHMANN SF 6

💡 What is a rod end bearing used for in compact machinery and how does the 6 mm LH variant fit 6 mm shafts?

It's handy for creating pivoting joints in tight spaces, ideal for robotics, automation, and control linkages.

- 6 mm bore matches standard shafts - M6x1 thread matches common fasteners - LH orientation supports dedicated layout designs - Helps improve motion control and reliability in compact assemblies

Female Rod End PHS6L One Left Hand

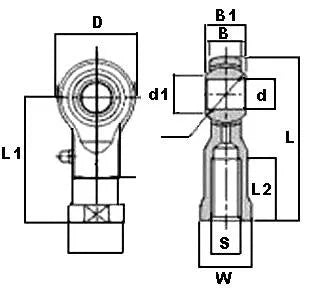

Dimensions (mm) d Thread S D B B1 d1 L L1 L2 W 6 M6x1 18 6.75 9 9 39 30 14 11
