VXB

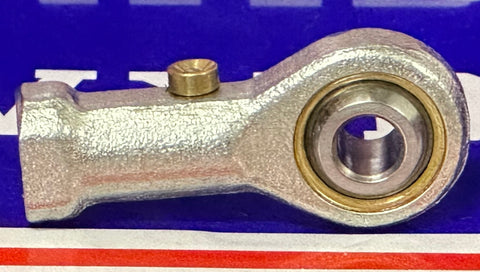

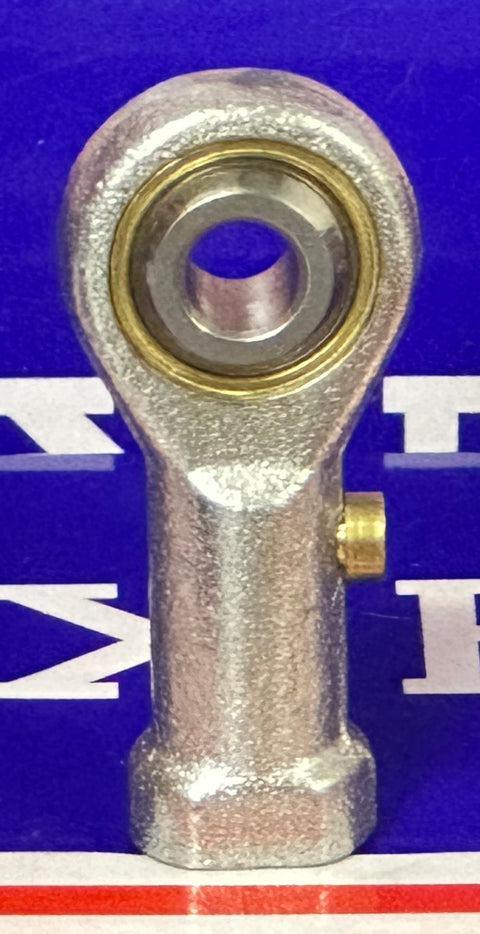

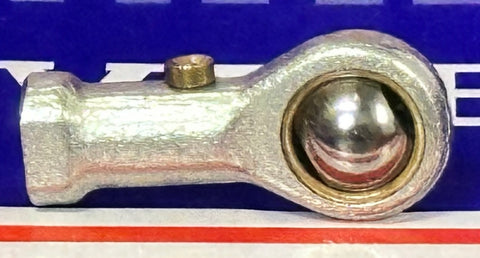

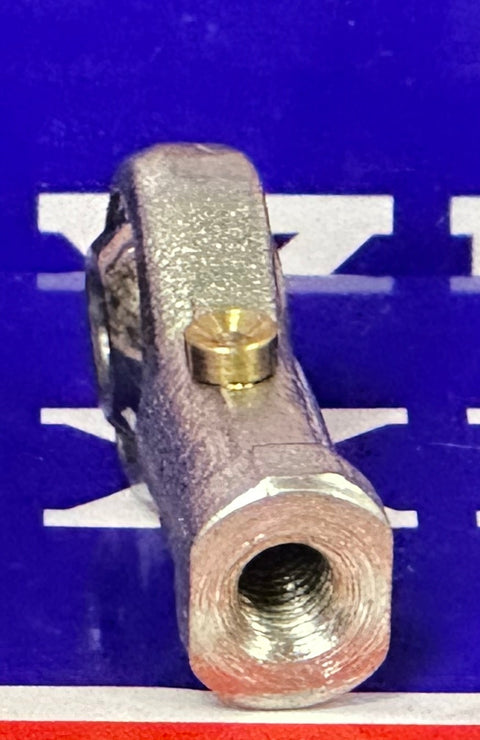

Female Rod End 5mm PHS5L Left hand Bearing

No reviews
$9.95
SKU: Kit14031
UPC: 00193019073803
Item: PHS5L Bearing
Type: Rod Ends Heim Joints Bearing
Quantity: One Bearing
Dynamic load Capacity: 330 KGF
Static load Capacity: 580 KGF
Female Rod End PHS5L
One Left Hand


One Left Hand Female Rod End PHS5L Works with 5mm Shafts, inner diameter is 5mm, the internal thread size is M5x0.8, Here is the interchange designation in every brand:

  • Item: PHS5L Bearing
  • Type: Rod Ends Heim Joints Bearing
  • Quantity: One Bearing
  • Dynamic load Capacity: 330 KGF
  • Static load Capacity: 580 KGF
  • IKO: PHS5L
  • ELGES: GIKFR 5 PB
  • Equal: SIKAC 5 M
  • HIRSCHMANN: SF 5

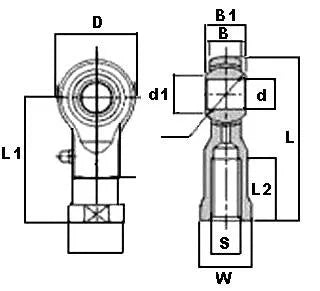

Dimensions (mm)
d Thread
S
D B B1 d1 L L1 L2 W
5 M5x0.8 16 6 8 7.7 35 27 14 9
