Female Rod End 5mm PHS5 Right hand Bearing

$3.88 $19.99you save $16.11
SKU: Kit11590
UPC: 00193019073193
Item: PHS5 Bearing
Type: Rod Ends Heim Joints Bearing
Quantity: One Bearing
Dynamic load Capacity: 330 KGF
Static load Capacity: 580 KGF
Female Rod End"PHS-5"
One Right Hand

One Right Hand Female Rod End PHS-5 Works with 5mm Shafts, inner diameter is 5mm, the internal thread size is M5x0.8, Here is the interchange designation in every brand:

  • Item: PHS5 Bearing
  • Type: Rod Ends Heim Joints Bearing
  • Quantity: One Bearing
  • Dynamic load Capacity: 330 KGF
  • Static load Capacity: 580 KGF
  • IKO: PHS5
  • ELGES: GIKFR 5 PB
  • Equal: SIKAC 5 M
  • HIRSCHMANN: SF 5

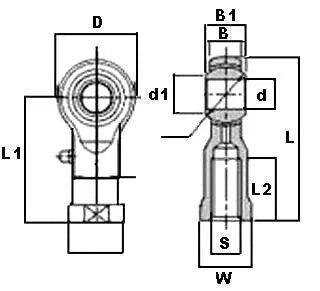

Dimensions (mm)
d Thread
S		 D B B1 d1 L L1 L2 W
5 M5x0.8 16 6 8 7.7 35 27 14 9
