Female Rod End 22mm PHS22 Right hand Bearing Joint

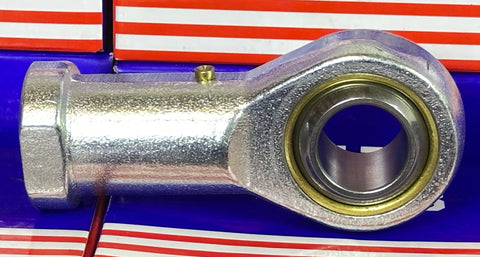

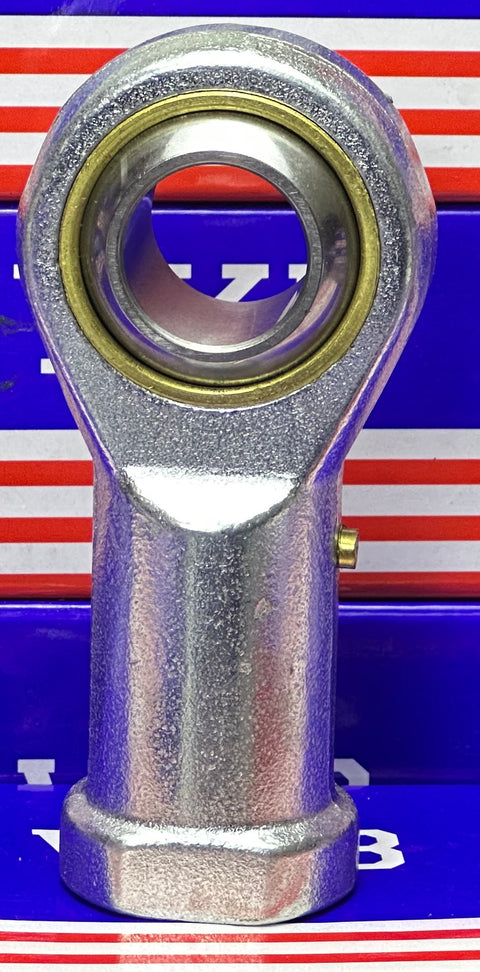

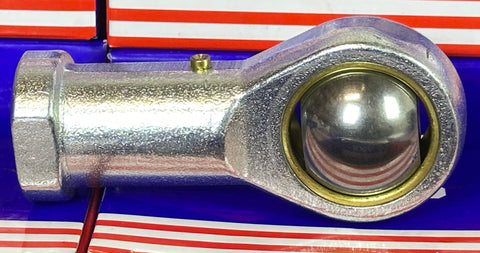

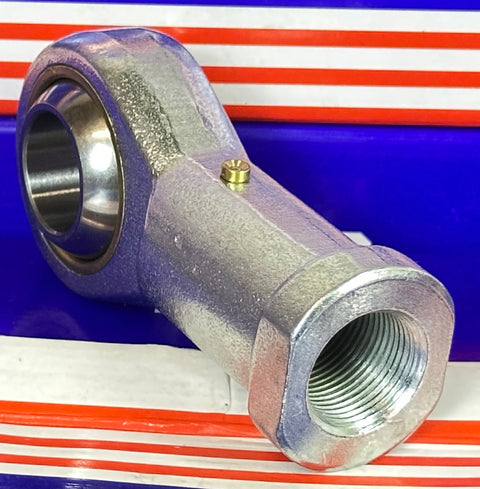

PHS22 Female Rod End Bearing - Right Hand Thread
✔️ 22mm ID with M22x1.5 Thread - For precise pivoting and linear motion control

The PHS22 is a right-hand female rod end bearing designed to fit 22mm shafts. It’s ideal for motion control, suspension arms, hydraulic cylinders, and mechanical linkages. With a strong dynamic and static load rating, this rod end joint provides smooth articulation and high durability in demanding mechanical or industrial environments.

✅ Pack size: 1 bearing
✅ Type: Female rod end - right-hand thread
✅ Inner diameter (bore): 22mm
✅ Thread size: M22 x 1.5 (right-hand)
✅ Dynamic load capacity: 3,810 KGF
✅ Static load capacity: 4,260 KGF
✅ Suitable for pivoting, suspension, and steering applications
✅ Fits mechanical linkages, actuators, and hydraulic setups

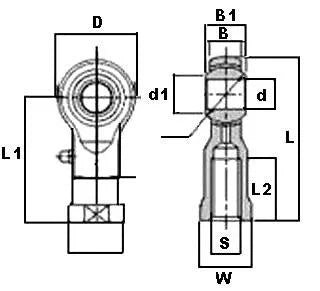

Dimensions Table (mm):

✅ Equivalent to:

• IKO: PHS22

• ELGES: GIKFR 22 PB

• HIRSCHMANN: SF 22

• Equal: SIKAC 22 M

💡 What are female rod end bearings used for in mechanical systems?
Rod ends provide a pivoting joint for precise motion alignment in linkages, especially where angular misalignment is present.

• Helps maintain flexible movement under load

• Common in steering arms, shock mounts, and pneumatic cylinders

• Threaded housing simplifies installation in machinery

• Reliable for automotive, agricultural, and industrial applications

Need a tough, pivot-ready joint for your next build? The PHS22 female rod end has your back - strong, smooth, and made to move!
