Female Rod End 20mm PHS20 - Right Hand Bearing Joint

Regular price $29.99 Sale price$51.99you save $22.00
SKU: Kit11591
UPC: 00193019065655
Item: PHS20 Bearings
Type: Rod Ends Heim Joints Bearing
Quantity: One Bearing
Dynamic load Capacity: 3,140 KGF
Static load Capacity: 3,620 KGF

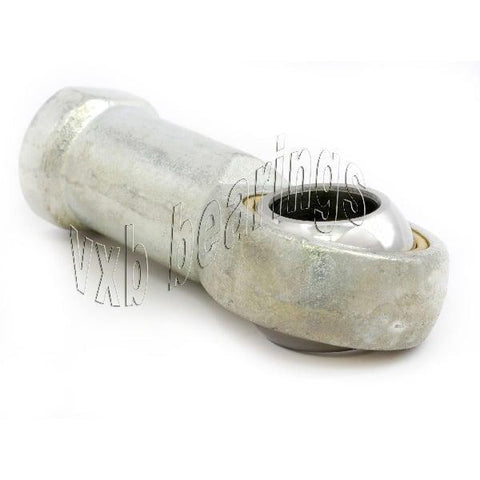

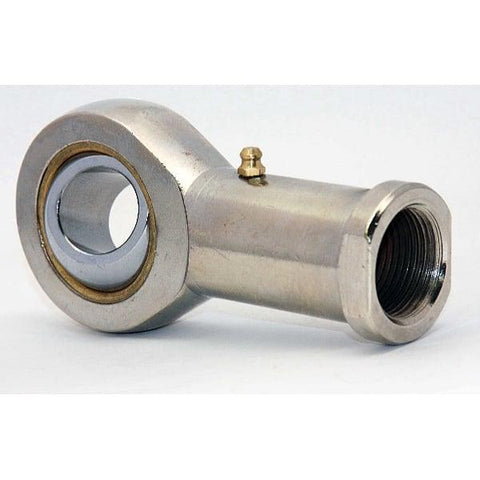

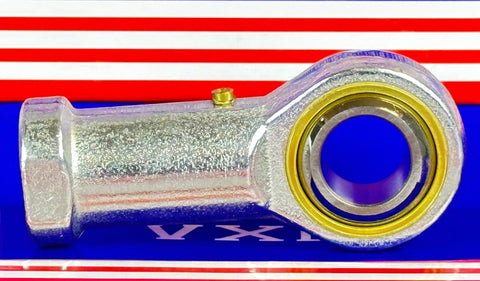

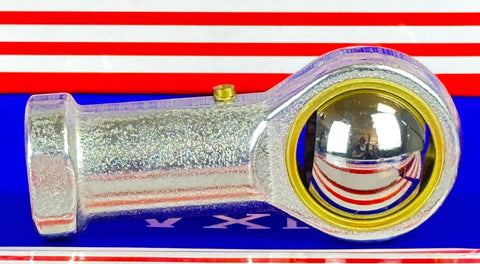

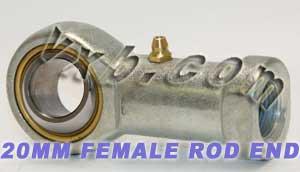

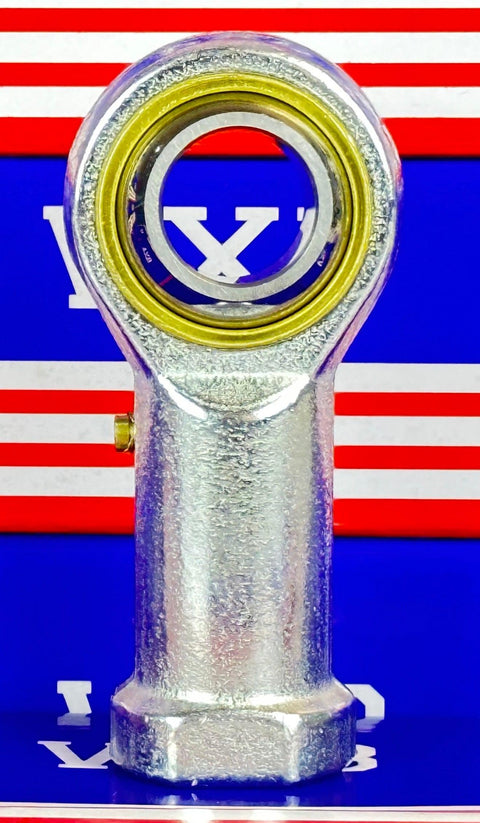

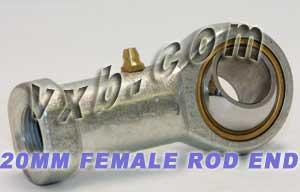

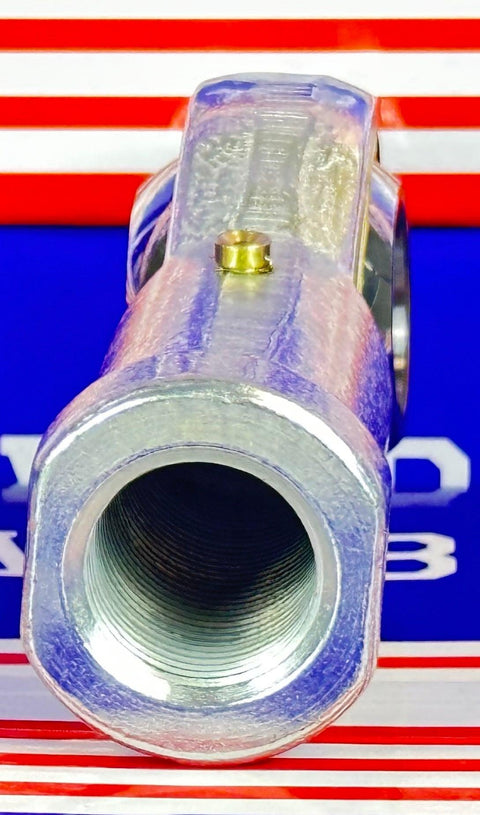

PHS20 Female Rod End Bearing - Right Hand
✔️ 20mm ID - M20x1.5 Thread - Heavy-Duty Heim Joint

The PHS20 is a right-hand threaded female rod end bearing designed for 20mm shafts. With a sturdy internal thread and high load capacity, it’s ideal for use in linkage systems, actuator arms, and motion control setups where durability and flexibility matter.

✅ Bore diameter: 20mm
✅ Thread: M20 x 1.5 (right-hand)
✅ Dynamic load capacity: 3,140 KGF
✅ Static load capacity: 3,620 KGF
✅ Female rod end / Heim joint style
✅ Quantity: 1 bearing

Dimensions (mm):

d Thread S D B B1 d1 L L1 L2 W
20 M20x1.5 RH 46 18 25 24.4 100 77 40 30

✅ Cross References:

  • IKO: PHS20

  • ELGES: GIKFR 20 PB

  • Equal: SIKAC 20 M

  • HIRSCHMANN: SF 20

💡 When is a right-hand female rod end the right fit for your setup?
Right-hand threaded rod ends are the most common and work in standard threaded assemblies, perfect for simple and secure linkage solutions.

  • Great for connecting to male threaded rods or arms

  • Common in machinery, automotive, and hydraulic systems

  • Supports angular motion and reduces misalignment

Strong, reliable, and ready to pivot - add it to your rig and keep everything moving smooth!

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Sylvia K.
DIY Mecanic

This was a replacement steering cylinder/tierod end for my brother's 1980s Allis Chalmers tractor. We couldn't find it anywhere at tractor/equipment dealers. After searching online by measurements/specs, I found your company offered the best replacement part. It even had a grease fitting in it!
