M18x1.5 Female Rod End 18mm PHS18 Right hand Bearing

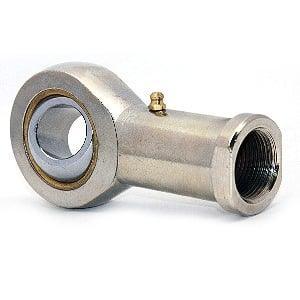

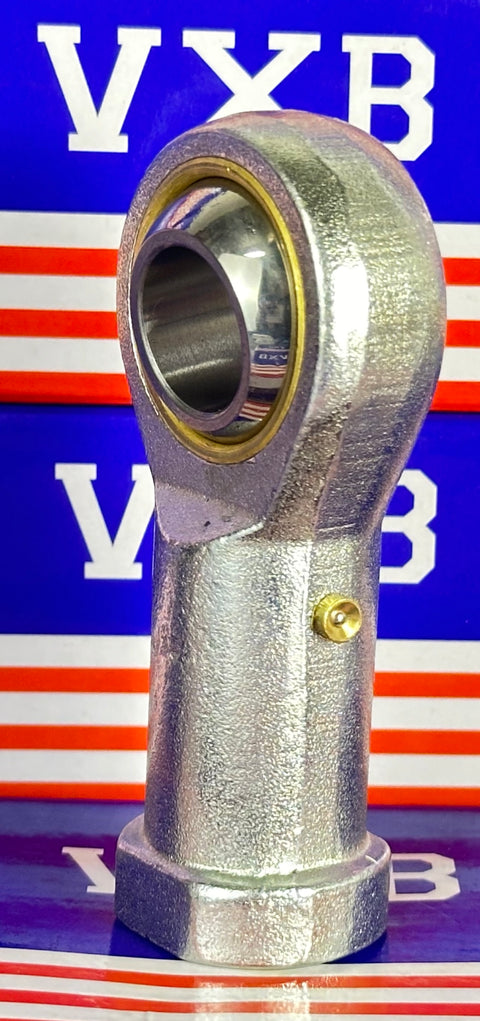

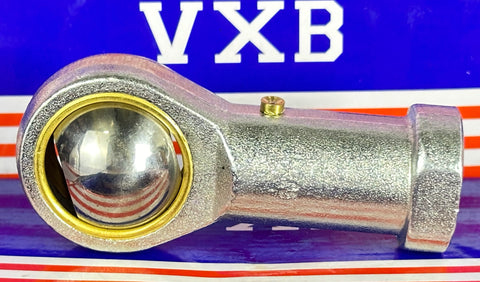

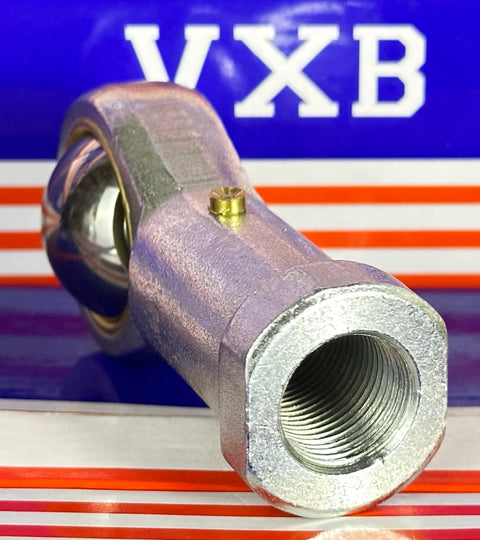

PHS-18 Female Rod End Bearing
✔️ Right Hand Thread - 18mm ID - M18x1.5 - Heavy Duty
The PHS-18 is a right-hand female rod end bearing designed for use with 18mm shafts. It features a strong internal M18x1.5 thread and supports up to 3,000 KGF static load. Commonly used in linkage systems, motion control setups, and steering connections, this bearing is built for high loads and smooth articulation.
✅ Inner diameter (bore): 18mm
✅ Thread: M18 x 1.5 (right-hand)
✅ Static load capacity: 3,000 KGF
✅ Dynamic load: Rated for high performance (KGF)
✅ Style: Female rod end - Heim joint type
✅ Thread direction: Right-hand
✅ Sold individually (1 bearing per pack)

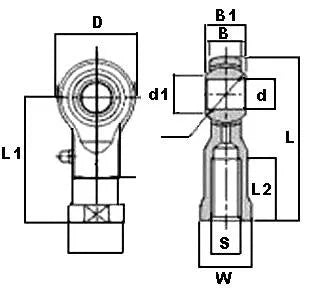

Dimensions (mm):
| d | Thread | S | D | B | B1 | d1 | L | L1 | L2 | W |
|---|---|---|---|---|---|---|---|---|---|---|
| 18 | M18x1.5 RH | 42 | 16.5 | 23 | 21.9 | 93 | 72 | 44 | 27 |
✅ Cross References:
-
IKO: PHS18
-
ELGES: GIKFR 18 PB
-
Equal: SIKAC 128 M
-
HIRSCHMANN: SF 18
💡 What are female rod end bearings used for in mechanical linkages?
Female rod ends connect moving parts with pivoting motion while handling both push and pull forces.
-
Ideal for control arms, actuators, and suspension links
-
Provide smooth articulation in compact spaces
-
Threaded housing allows easy integration into rods or brackets
