VXB

Female Rod End 14mm PHS14L Left hand Bearing

No reviews
$7.88
SKU: Kit14215
Item: PHS14L Bearing
Type: Rod Ends Heim Joints Bearing
Quantity: One Bearing
Dynamic load Capacity: 1,710 KGF
Static load Capacity: 2,130 KGF

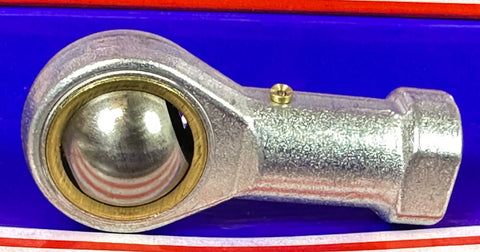

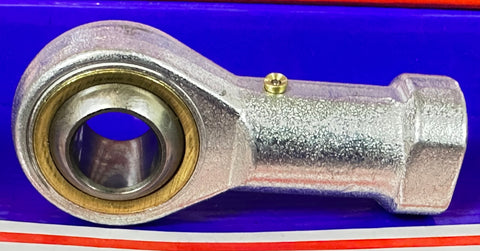

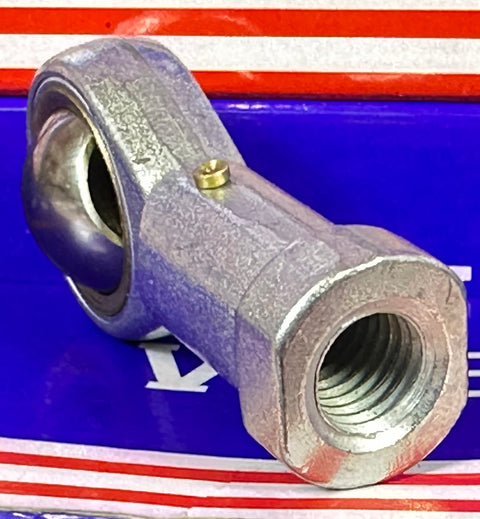

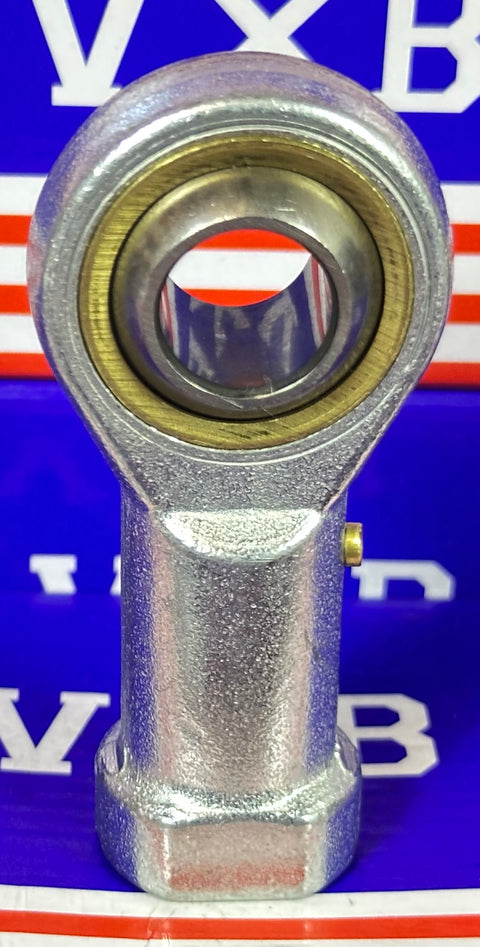

Female Rod End"PHS14L"
One Left Hand


One Left Hand Female Rod End PHS14L Works with 14mm Shafts, inner diameter is 14mm, the internal thread size is M14x2, Here is the interchange designation in every brand:

  • Item: PHS14L Bearing
  • Type: Rod Ends Heim Joints Bearing
  • Quantity: One Bearing
  • Dynamic load Capacity: 1,710 KGF
  • Static load Capacity: 2,130 KGF
  • IKO: PHS14L
  • ELGES: GIKFR 14 PB
  • Equal: SIKAC 14 M
  • HIRSCHMANN: SF 14

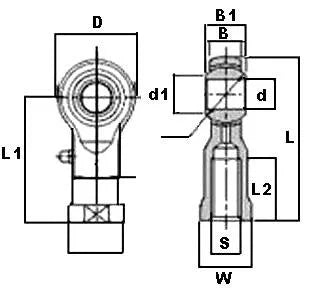

Dimensions (mm)
d Thread
S
D B B1 d1 L L1 L2 W
14 M14x2 34 13.5 19 16.9 74 57 27 22
