Female Rod End PHS14 Right Hand Bearing For 14mm Shafts With M14x2 Internal Thread Precision High Load Rod End Joint Compatible With Heim Joint Systems Dynamic Load Capacity 1710 KGF For Heavy Duty Applications

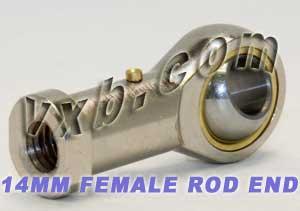

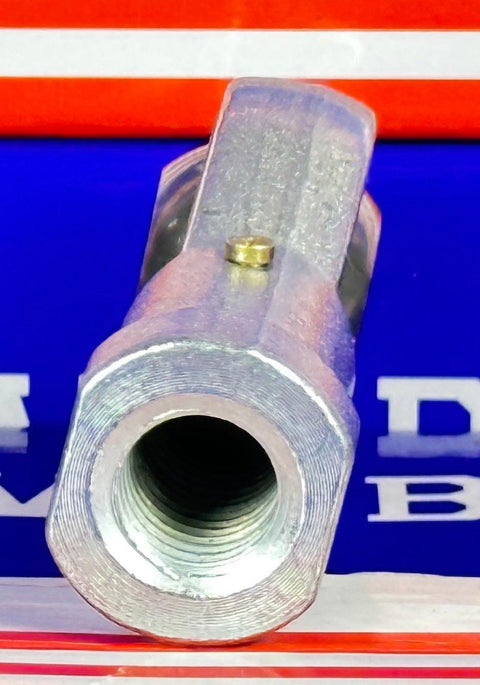

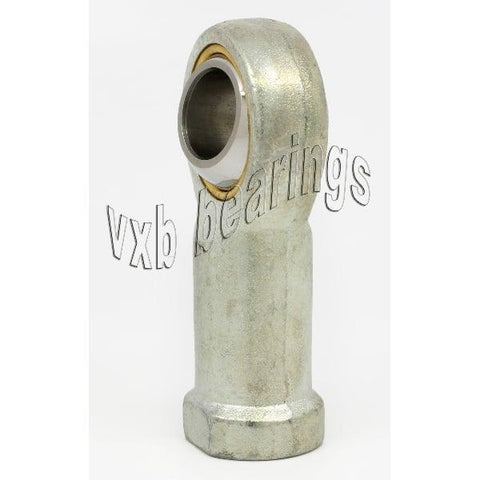

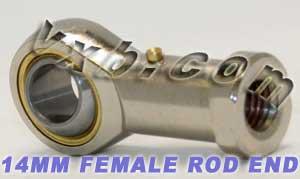

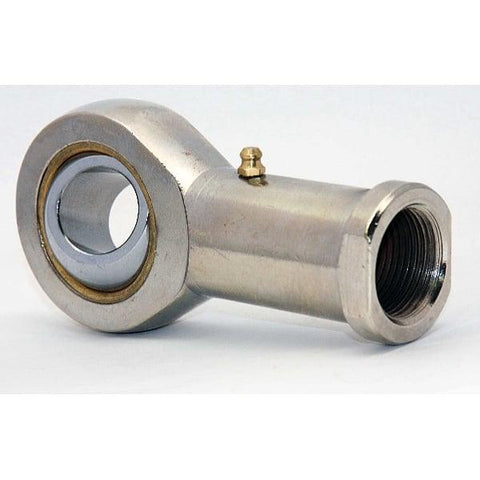

Female Rod End Bearing for 14mm Shafts, PHS14 Right-Hand
✔️ 14 mm bore, M14x2 thread, 34 mm OD, 1,710 kgf dyn load, 1 bearing

This compact female rod end bearing is designed for 14 mm shafts and uses an internal M14x2 connection. It’s a common choice in automation linkages, robotics, CNC applications, and other equipment where reliable articulation and load handling matter.

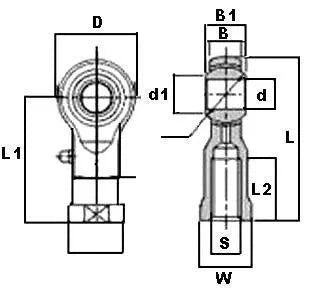

✅ Inner diameter 14 mm, thread M14x2, outer diameter 34 mm, length 74 mm
✅ Dynamic load 1,710 kgf; static load 2,130 kgf
✅ Right-hand female rod end designed for 14 mm shafts, single bearing
✅ Cross-reference: PHS14, IKO PHS14, ELGES GIKFR14, PB, SIKAC14 SF14

💡 What is a rod end bearing used for in mechanical linkages? This handy guide helps designers choose the right joint for motion systems.

- rod end bearing 14 mm bore, M14x2 thread, right-hand female joint - used in automation, robotics, and CNC linkages for smooth motion - fits 14 mm shafts and standard cross-reference parts like PHS14 - options include sealed ball bearing and ceramic variants for durability
