ES24TX Pro BeefedUp 1000mW 2 4G ExpressLRS Micro TX Module With EP1 RX ELRS PP 2 4GHz SX1280 Nano Long Range Receiver For FPV Drones Open Source ExpressLRS System And Ultra Reliable Link
✔️ 1000mW max output, 2400-2500MHz, 500Hz RX, ready to use
The ES24TX Pro Micro ExpressLRS TX module is a compact, open-source radio transmitter add-on designed for FPV drones and long-range racing. It works with radios that have a Micro JR bay and delivers a fast, low-latency link to compatible receivers.
✅ Regulatory Domain: ISM2400✅ MCU: ESP32 (main), ESP8285 (aux)
✅ RF chip: SX1281IMLTRT
✅ JR standard 5pin socket
✅ Frequency Range: 2400-2500 MHz
✅ Maximum receive refresh rate: 500 Hz
✅ Minimum receiver refresh rate: 25 Hz
✅ RF Output Power: >30 dBm
✅ Power supply voltage: 5V-10V
✅ Weight: 51 g without antenna
✅ Dimensions: 70 mm × 49 mm × 32.5 mm
✅ Antenna gain: 4.18 dBi
✅ Firmware target: HappyModel_ES24TX_Pro_Series_2400_TX
✅ EP1_RX Type: ISM ESP8285 MCU SX1280IMLTRT RF Module
✅ Omnidirectional antenna frequency: 2400-2500 MHz
✅ Maximum receive refresh rate: 500 Hz
✅ Minimum receiver refresh rate: 25 Hz
✅ Working voltage: 5V
✅ Weight: 0.42 g (without antenna)
✅ Dimension: 10 mm × 10 mm × 6 mm
✅ Peak gain: 2.23 dB

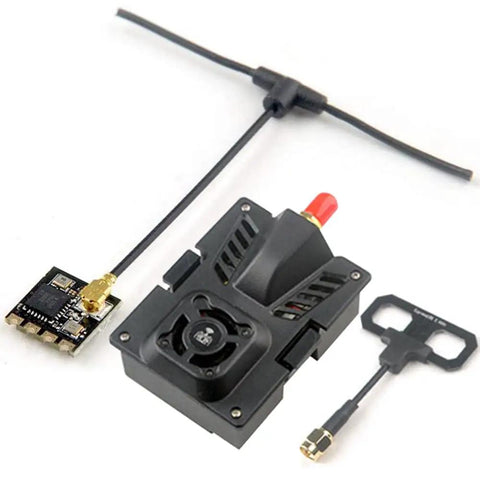

✅ Package includes: ES24TX Pro, 2.4GHz Moxon antenna, EP1_RX, 40mm antenna, 90mm antenna
✝️
The ES24TX Pro Micro ExpressLRS TX module is a compact, open-source radio transmitter add-on designed for FPV drones and long-range racing. It works with radios that have a Micro JR bay and delivers a fast, low-latency link to compatible receivers.
💡 What is a 2.4GHz ExpressLRS micro TX module used for in FPV drone systems? This handy device provides a high-performance link for FPV setups.
- integrated with OpenTX radios that have Micro JR bay
- firmware upgrades via WIFI for EP1_RX/EP2_RX
- supports up to 1000mW RF output in 2400-2500MHz
- up to 500Hz receive refresh rate for smooth control
