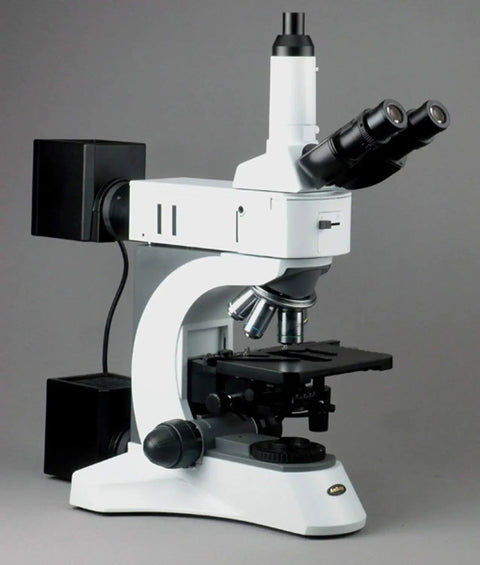

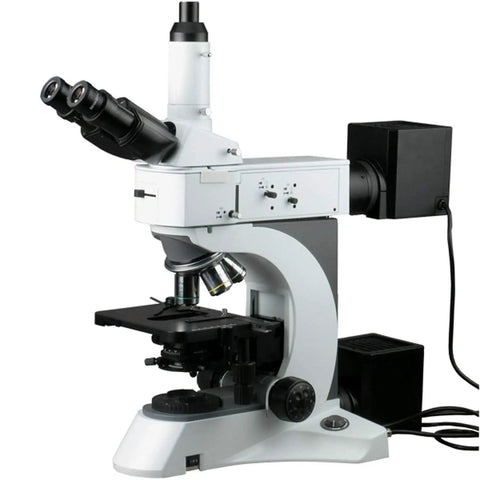

Episcopic And Diascopic Trinocular Metallurgical Microscope With Infinity Plan Achromatic Optics Nine Magnification Settings Up To 2500X 100W Halogen Illumination For Epi And Transmitted Light Pro Grade Lab Tool For Materials Analysis
✔️ Nine magnifications to 2500X with epi and diascopic light, single unit
The instrument is a professional metallurgical trinocular microscope designed for materials analysis, offering both episcopic (reflected) illumination for opaque specimens and diascopic (transmitted) illumination for translucent samples. It is ideal for metal, alloy, ceramic, and coating inspection in research labs, quality control, and teaching environments.

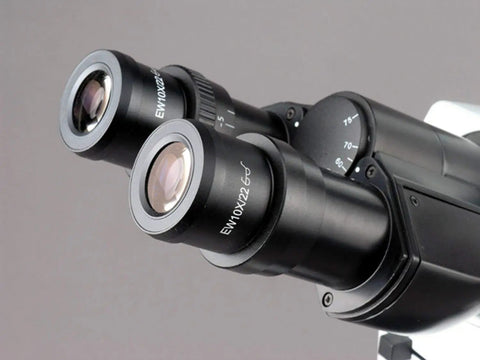

✅ Eyepieces: interchangeable 10x22mm and 25x9mm extreme-widefield; one 10x22mm with micrometer/reticle
✅ Nosepiece: reverse-mounted quintuple nosepiece for protection and secure slide handling
✅ Objectives: polarizing and BF/DF infinity plan achromatics with 5x, 10x, 20x, 50xS, 100xS (oil) and 40xS, 100xS (oil)

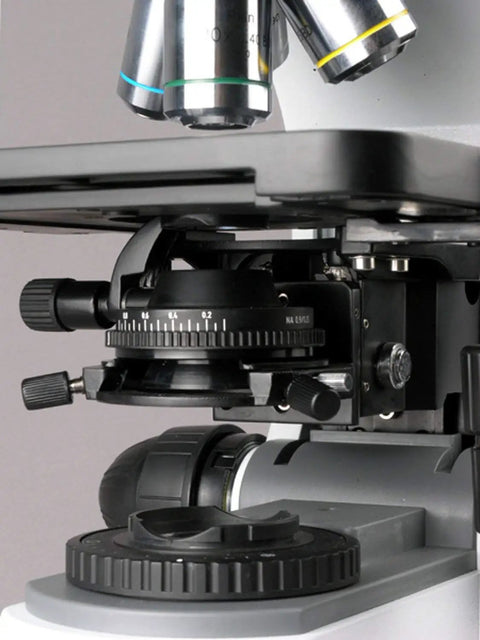

✅ Illumination and optics: episcopic 100W halogen with polarizer and diascopic BF/DF lighting, Kohler condenser
✅ Stage and mechanics: double-layer stage with 1mm divisions, 0.1mm vernier, 185x142mm, stage stop and coarse/fine focus tension
✅ Head and ports: trinocular viewing head with 23mm photo port, 30-degree incline, 360-degree rotation
💡 What is a handy choice for a metallurgical microscope used in materials analysis and metal testing?
It's built to handle both polarizing reflected light and transmitted light to view opaque and translucent specimens, with robust stage control and precise measurements.
- Designed for long working distance with infinity plan achromatic objectives to keep images sharp across the field
- Includes polarizing and BF/DF illumination for a wide range of specimen types
- Trinocular head with 23mm photo port and adjustable interpupillary distance supports image capture
- Spring-loaded objectives and stage stop protect slides and optics during use
