EPDM Rubber Sleeve Coupling Insert for S-Flex Series, Solid One-Piece Design, 6 Inch Outside Diameter, 3 Inch Elastomer Length, 2340 In-Lb Rated Torque, Heavy-Duty Fit for Motors Pumps Compressors Blowers Mixers Conveyors, -30 to 275 F
✔️ 6.00 in OD, 3.00 in elastomer, EPDM, -30 to 275 F, 2340 in-lb

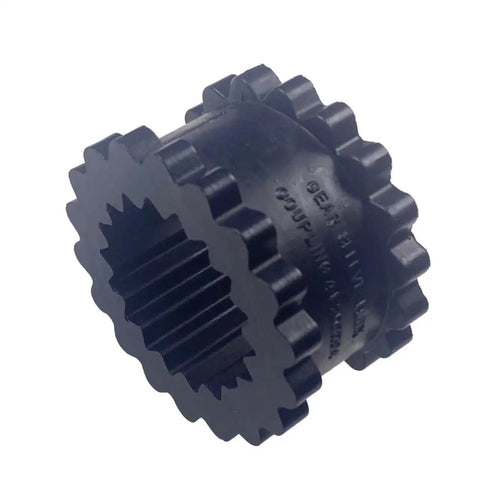

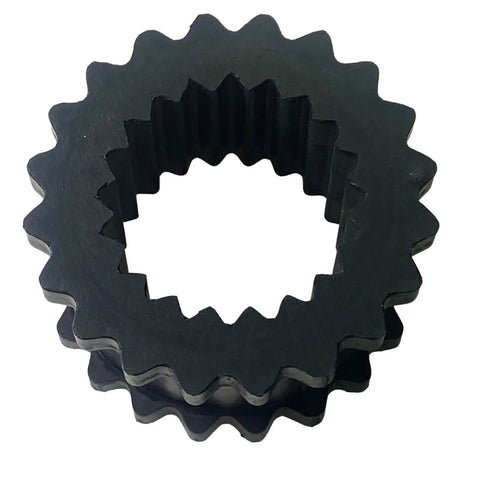

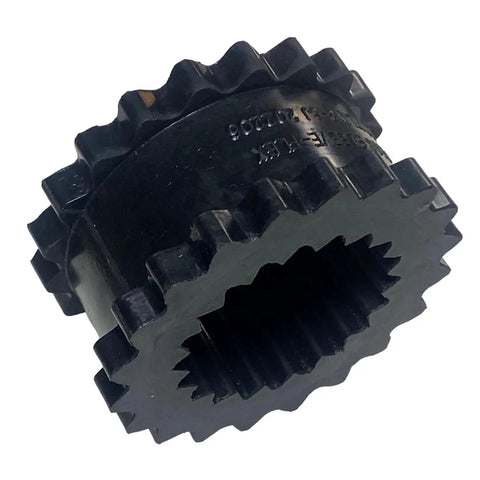

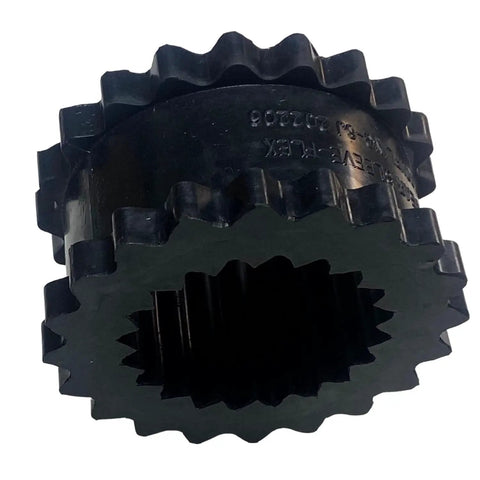

This sleeve coupling insert is a single, solid EPDM rubber component designed for Lovejoy E-type S-Flex couplings. It provides torsional flexibility and wear resistance in drive systems such as motors, pumps, compressors, blowers, mixers, and conveyors.
✅ Outside Diameter: 6.00 in
✅ Elastomer Length: 3.00 in
✅ Insert Material: EPDM Rubber
✅ Operating Temp: -30 to 275 F
✅ Rated Torque: 2340 in-lb
✅ Max RPM: 3750
✅ HP @ 3600 RPM: 133.66 HP
✅ HP @ 1800 RPM: 66.83 HP
✅ HP @ 1200 RPM: 44.55 HP
✅ HP @ 100 RPM: 3.71 HP
✅ Body Style: 9JE
✅ For Use With: Lovejoy E type S-Flex
💡 What is a sleeve coupling insert used for in Lovejoy E-type S-Flex assemblies?
Designed to handle torsional loads and dampen shock, extending the life of the coupling in drive systems using the S-Flex family.
- Distributes torque across the sleeve and flanges to reduce wear.
- EPDM rubber offers temperature resistance from -30 to 275 F.
- Compatible with Lovejoy E-type S-Flex flexible coupling assemblies.
