End Fed Half Wave HF Antenna For 1 To 30 MHz Multiband 100W Capable Portable And Base Station Ready Outdoor Ham Radio Antenna For CW FM AM FT4 FT8 SSB Across Multiple Bands
✔️ Wide-band end-fed half-wave HF antenna supports 1-30 MHz up to 100W
This multiband End-Fed Half Wave antenna is built for amateur radio operators who need reliable performance in the field or at a fixed station. Covering 1-30 MHz, it’s ideal for portable operations and base stations, including CW, FM, AM, FT4, FT8, and SSB across multiple bands.
✅ Frequency range: 1-30 MHz wide-band operation for multiple HF bands
✅ Power handling: up to 100W operating power for stable signal transmission
✅ Matching: 1:49 / 1:64 End Fed Half Wave impedance matching

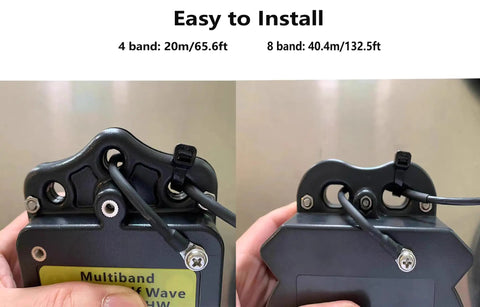

✅ Wire length options: 4-band 20 m (65.6 ft) or 8-band 40.4 m (132.5 ft), trim for resonance

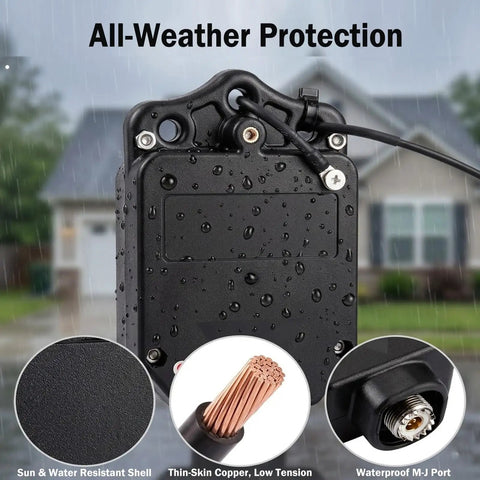

✅ Construction: ABS enclosure with high hardness and impact resistance for outdoor use
✅ Optimized performance: 1:64 matching minimizes loss and boosts reception
✅ Color: Black
| Aspect | Details |
|---|---|
| Band Coverage | 1-30 MHz |
| Power Handling | SSB < 150 W; CW < 120 W; FT8/FT4 < 60 W; nominal up to 100 W |
| Wire length (4-band) | 20 m (65.6 ft) ≈ 20,000 mm / 787 in |
| Wire length (8-band) | 40.4 m (132.5 ft) ≈ 40,400 mm / 1592 in |
| Material | ABS enclosure, weather resistant |
| Color | Black |
💡 What is an end-fed HF antenna used for in amateur radio? A handy setup for field ops and base stations. - Handy for field deployments and portable operations - Works across 1-30 MHz for CW, SSB, FT8/FT4 - Quick to install with tree or mast mounting - Lightweight and weather-resistant for outdoor use
