EMAGENE Air-Operated Double Diaphragm Pump, 1/2 inch inlet and outlet, polypropylene body, 9GPM and Max 100pSI for solvent and Industrial Use

EMAGENE Air-Operated Double Diaphragm Pump 1/2 in Inlet/Outlet, Polypropylene Body, 9 GPM, 100 psi, Solvent & Industrial Use - Single Unit

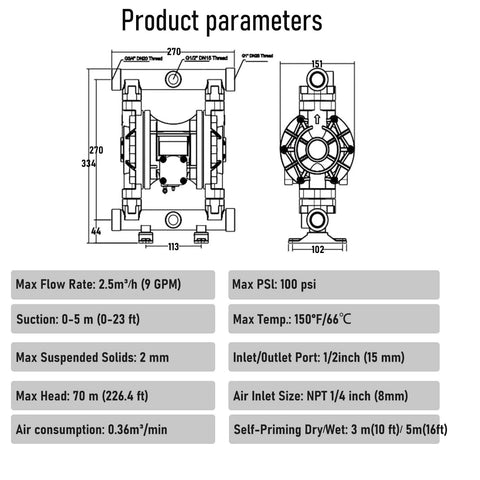

✔️ Inlet/Outlet 1/2 in (12.7 mm); Max flow 9 GPM; Max pressure 100 psi; Max temp 150°F (66°C); Polypropylene body with Teflon diaphragms (PTFE)

EMAGENE's Air-Operated Double Diaphragm Pump is a handy, air-powered transfer pump built for solvent and industrial liquids. It’s widely used across oil, metal, paint, mining, water treatment, automotive, and coating sectors to move viscous fluids safely without electricity. The polypropylene housing resists chemicals, while premium PTFE diaphragms deliver long life in harsh environments, making it a dependable choice for solvent handling, waste oils, and heavy liquids.

✅ Inlet/Outlet: 1/2 in (12.7 mm) - Flow: 9 GPM (34.1 L/min)
✅ Max pressure: 100 psi (6.9 bar)
✅ Max head: 226.4 ft (69 m); Temp: up to 150°F (66°C)

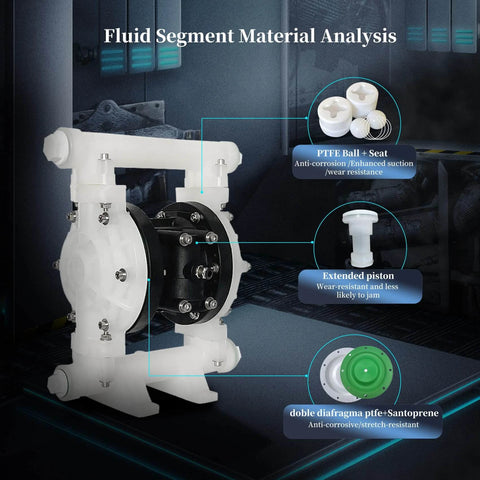

✅ Material: Polypropylene body; Diaphragms: PTFE (Teflon); No lubrication required

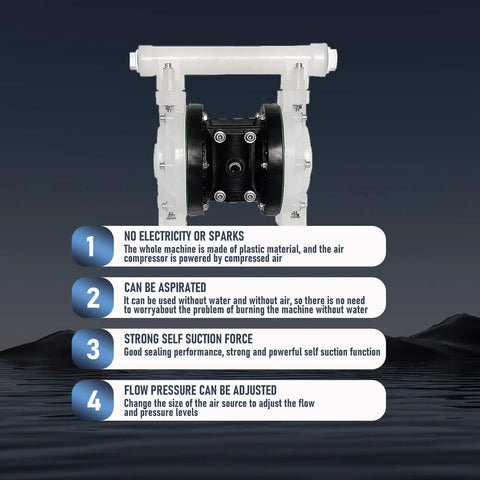

✅ Immersible design; low energy consumption; suitable for viscous fluids and solvents
💡 What is an air-operated double diaphragm pump used for in industrial solvent handling? These pumps are handy for safe, non-sparking liquid transfer in harsh environments. They pair compressed air power with seal protection to move chemicals efficiently. - Handy for transferring solvents, oils, paints, and slurries in refineries, metalworking, and coating shops. - Durable PTFE diaphragms and a polypropylene body resist chemical attack and wear. - Simple valve adjustments let you control flow and head on the job site. This setup delivers reliable performance for on-site solvent handling and heavy liquid transfer.
