Electric Skateboard Speed Controller FSESC67 70A With Aluminum Anodized Heat Sink Four Control Modes Current Duty Cycle Speed Position Latest Firmware Programmable With Safer Protections Like Low Voltage High Voltage And Over Current

FSESC67 70A Electric Skateboard Controller with Heatsink
✔️ Four control modes, latest firmware, single unit package, ready

This FSESC67 70A electric skateboard speed controller comes with an aluminum anodized heatsink, offering four control modes and built-in safety protections. It's ideal for e-skateboards, e-bikes, scooters, and robotics projects. Pack size: single unit.

✅ Continuous current: 70A; instantaneous current: 200A
✅ Voltage range: 14V-60V (4-13S; safe for 4S-12S; spikes may not exceed 60V)

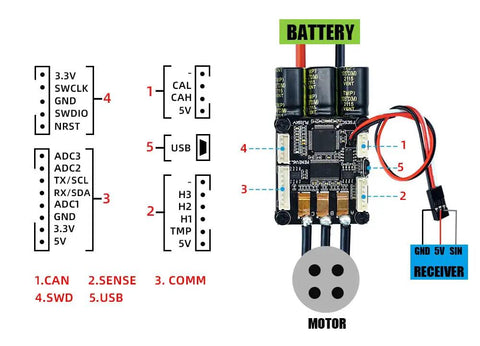

✅ Control interfaces: USB, CAN, UART, SPI, IIC
✅ Modes: DC, BLDC, FOC (sinusoidal); regenerative capacity: Yes
✅ Four control modes: Current / Duty Cycle / Speed / Position
✅ Protection: low voltage protection, high voltage protection, over-current protection, temperature abnormal protection, MOSFET over-temperature protection

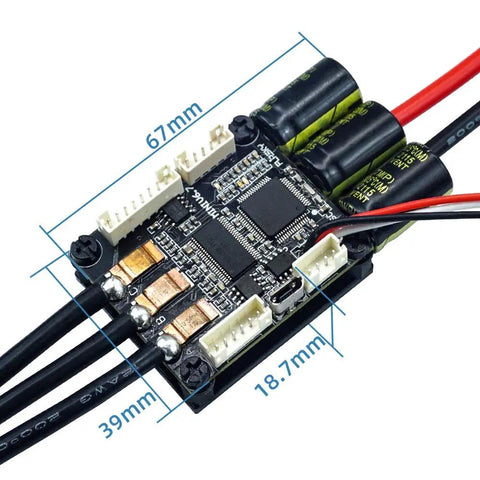

✅ Size: 67x39x18.7mm (including heatsink)
✅ Sensor and IMU support: ABI, HALL, AS5047, AS5048A via IIC
✅ Power and wiring: motor wire 12AWG; power cable 12AWG

💡 What is a high-performance speed controller used for in an electric skateboard setup?

A handy device that manages motor speed safely and efficiently for smooth rides.

• high-current ESC for brushless motors with programmable firmware
• multi-mode control including current, duty cycle, speed, and position
• sensor compatibility and IMU integration for balance and stability
• protective features like low/high voltage and over-current

✝️
