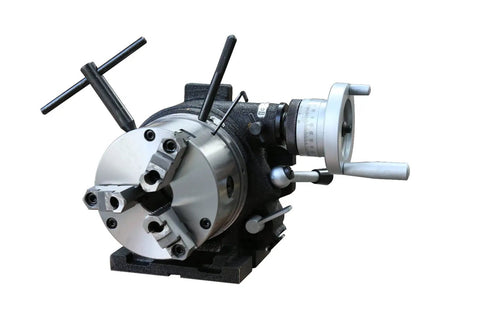

Eight Inch Precision Indexing Spacer With Adjustable Chuck And Worm Gear Rotary Table Built Tough For Heavy Shop Use Dead Nuts Accurate And Slick Smooth Manual Dial Operations On Any Rig
✔️ 8 inch adjustable chuck 25 sec indexing accuracy

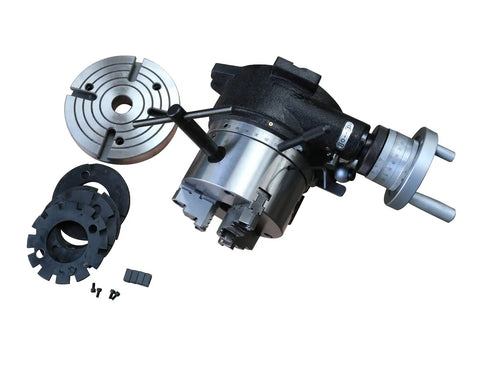

This heavy duty indexing spacer pairs a worm gear reduction setup with a manual dial for precise part location on milling machines drill presses and jig borers. The solid mount holds work pieces steady while delivering repeatable angular shifts across broad project layouts.
✅ 1 to 90 worm gear reduction handle with one minute graduations✅ Forty eight degree range covered by twenty four position indexing plate
✅ Satin chrome ring paired with five minute adjustable vernier scale
✅ Six masking division plates and clamping shoes to secure spindle
✅ Two hundred twenty pound frame supports six three mm center opening
💡 What role does a precision indexing spacer play in improving machining alignment accuracy?
Setting up complex multi-sided components becomes much easier when angular positioning stays rock solid. Each shift relies on confirmed measurement points rather than visual estimation.
- Worm reduction gearing keeps backlash dead nuts minimal during heavy cutting loads
- Calibrated vernier scales prove plenty handy for quick adjustments on any rig layout
- Adjustable chucks keep things slick smooth while preventing lateral shifting
- Integrated locking hardware lets knuckle down workers hold rotary tables steady
