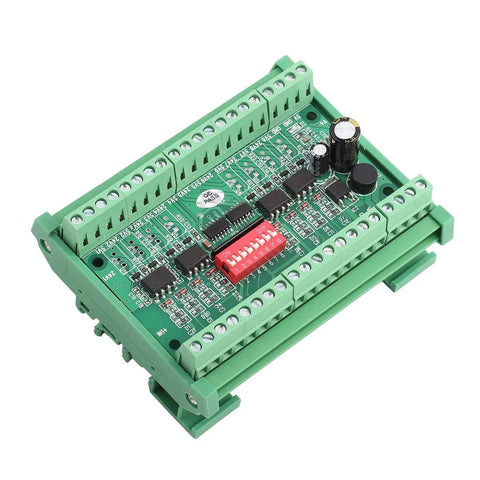

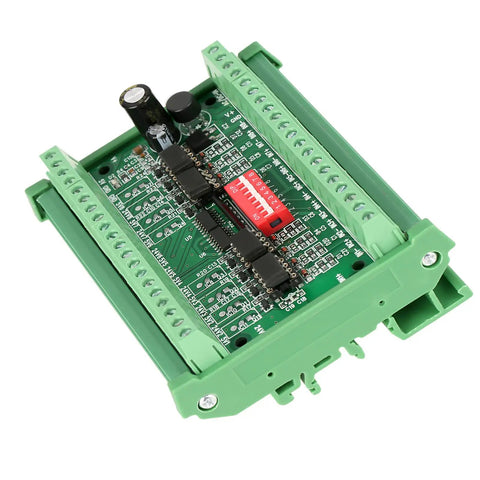

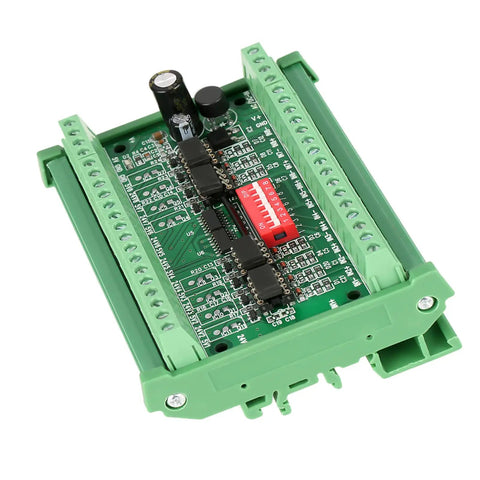

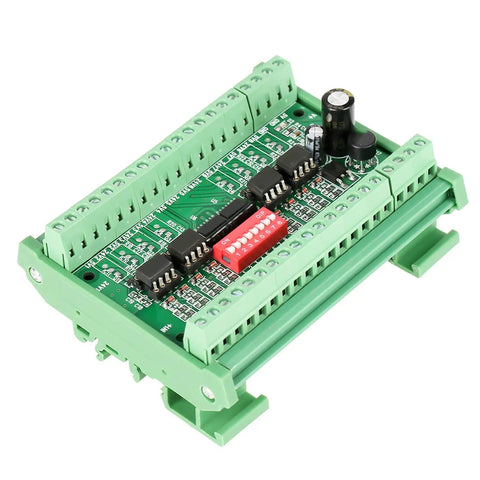

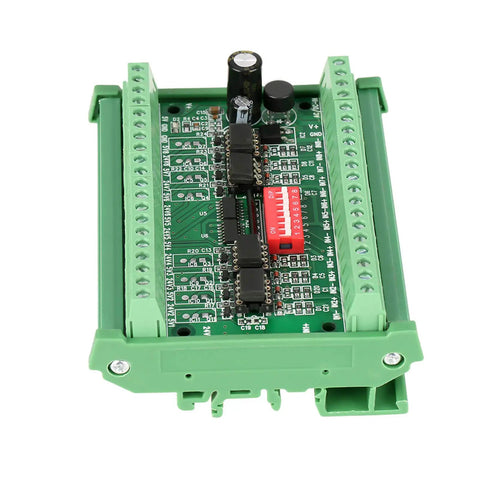

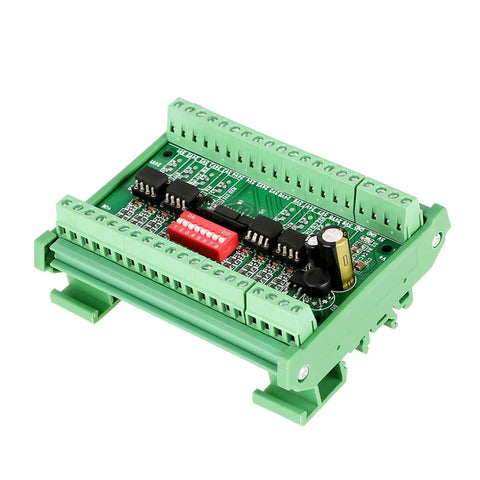

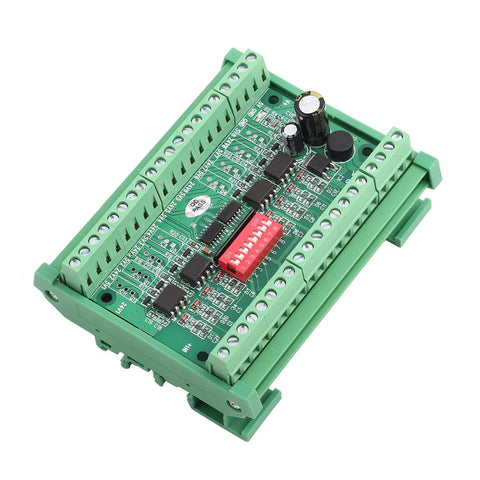

Eight Channel NPN And PNP To NPN Logic Level Converter Module For 5V And 24V Signals Pro Grade Voltage Translator With Common Cathode Or Anode Input Simple Plug And Play PLC And Microcontroller Interface

Eight-Channel Logic Level Converter for 5V/24V PLCs
✔️ 8-channel 5V/24V level shifting with 100mA drive and opto isolation

Eight-channel voltage level translator designed to bridge 5V microcontrollers and 24V PLC I/O, with common-cathode or common-anode inputs and opto isolation for robust, interference-free operation.

✅ 8-channel voltage level translator compatible with common-cathode or common-anode input connections.

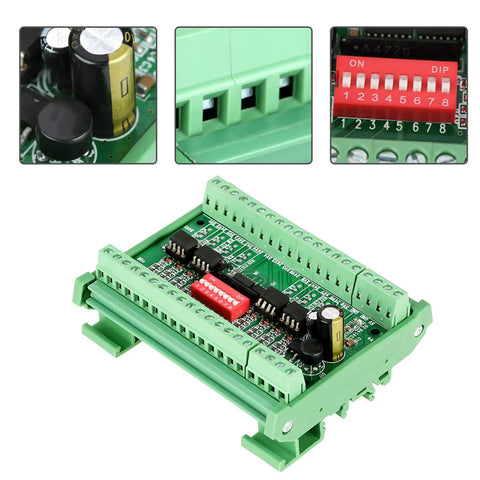

✅ DIP switch sets input voltage level; supports 5V and 24V logic.
✅ Outputs 24V NPN open-collector with 100 mA drive capability.
✅ Converts 5V to 24V and 24V to 5V while isolating input and output via optocouplers.
✅ Default operation at 24VDC; supports 7-35V DC or 18-24V AC for 5V output.

💡 What is a logic level converter used for in PLC and microcontroller projects? A handy explanation of its role in interfacing devices with different voltage levels. - safe interfacing between 5V logic and 24V PLC I/O. - opto-isolated input/output to reduce noise and interference in industrial settings. - supports common-cathode and common-anode inputs for wiring flexibility.
